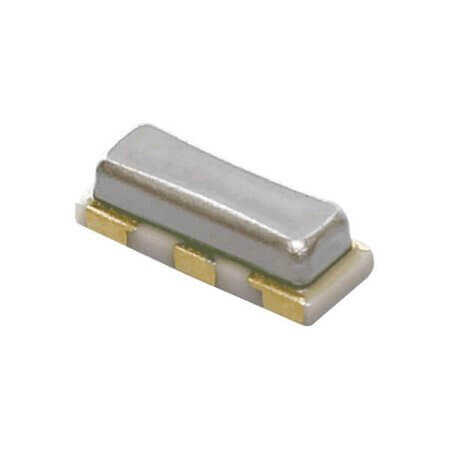

CSTNE20M0VH3L000R0 CRYSTAL RESANATOR 20MHZ 15PF SMD

CSTNE20M0VH3L000R0 CRYSTAL RESANATOR 20MHZ 15PF SMD Description

CSTNE20M0VH3L000R0 CRYSTAL RESANATOR 20MHZ 15PF SMD CSTNE20M0VH3L000R0 is a high-performance component offering features like frequency stability of ±0.11%, equivalent series resistance of 40 Ohms, and more. It comes in dimensions of 3.20mm x 1.30mm x 0.70mm and operates within a temperature range of -40°C~+85°C. Compliant with ROHS standards, it is packaged as TAPE&REEL for ease of use.

CSTNE20M0VH3L000R0 CRYSTAL RESANATOR 20MHZ 15PF SMD Technical Specifications

• Manufacturer: MURATA
• MountingType: SMT
• Series: CSTNE
• Package/Case: 3-SMD
• Frequency: 20MHz
• Capacitance: 15pF
• FrequencyTolerance: ±0.07%
• FrequencyStability: ±0.11%
• EquivalentSeriesResistance(ESR): 40 Ohms
• Applications: N/A
• Diameter: N/A
• Length: 3.20mm
• Width: 1.30mm
• Height: 0.70mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
