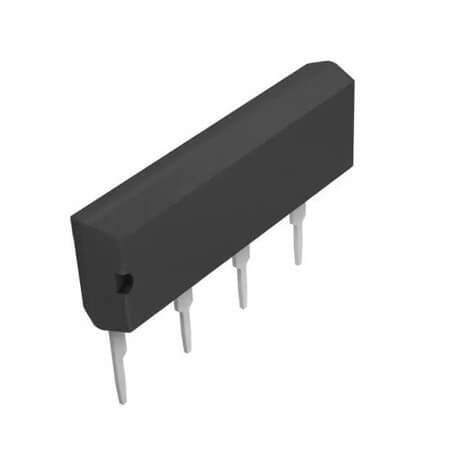

CPC1219Y RELAY SOLID STATE 200mA 0-60V SPST-NC(1FormB)

CPC1219Y RELAY SOLID STATE 200mA 0-60V SPST-NC(1FormB) Description

The CPC1219Y RELAY SOLID STATE 200mA 0-60V SPST-NC(1FormB) The CPC1219Y from IXYS CLARE is a cutting-edge RELAY SOLID STATE 200mA 0-60V SPST-NC(1FormB), tailored for reliable and efficient applications. Designed to handle a load current of 200mA with an input voltage of 3.75-12VDC, it ensures seamless integration into various systems. The relay operates at load voltages of 0-60V with an on-resistance of 16 Ohms, delivering consistent and precise performance.Built with an AC, DC output type and packaged in TUBE, the CPC1219Y guarantees versatility and easy installation. Compliant with ROHS standards and capable of operating across a wide temperature range of N/A, this relay is an essential choice for professionals demanding top-tier quality.

CPC1219Y RELAY SOLID STATE 200mA 0-60V SPST-NC(1FormB) Technical Specifications

• Manufacturer: IXYS CLARE
• MountingType: THT
• Series: CPC, OptoMOS
• Package  /Case: SIP8, 4 Leads
• ContactForm: SPST-NC (1 Form B)
• OutputType: AC, DC
• OnResistance: 16 Ohms
• LoadCurrent: 200mA
• InputVoltage: 3.75-12VDC
• LoadVoltage: 0-60V
• Rohs: ROHS
• Packaging: TUBE
