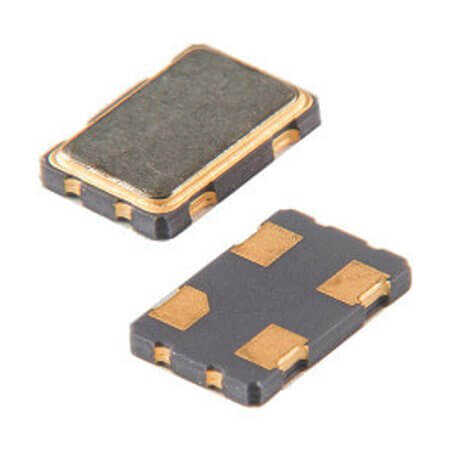

COM2305-25.000-EXT-TR CRYSTAL OSC. 25MHz 3.3V 15pF 30PPM CMOS SMT

COM2305-25.000-EXT-TR CRYSTAL OSC. 25MHz 3.3V 15pF 30PPM CMOS SMT Description

COM2305-25.000-EXT-TR CRYSTAL OSC. 25MHz 3.3V 15pF 30PPM CMOS SMT The product COM2305-25.000-EXT-TR (CRYSTAL OSC. 25MHz 3.3V 15pF 30PPM CMOS SMT) is a high-precision crystal oscillator designed for reliable frequency control. Manufactured by RALTRON, it offers a frequency stability of ±30PPM and operates at a supply voltage of 3.3V. The output type is CMOS, making it versatile for various N/A applications. The compact design measures 5.00mm x 3.20mm x 1.00mm and performs reliably within a temperature range of -40°C~+85°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an ideal choice for modern electronic systems.

COM2305-25.000-EXT-TR CRYSTAL OSC. 25MHz 3.3V 15pF 30PPM CMOS SMT Technical Specifications

• Manufacturer: RALTRON
• MountingType: SMT
• Series: COM2303
• Package/Case: 4-SMD
• Frequency: 25MHz
• Capacitance: 15pF
• FrequencyTolerance:
• FrequencyStability: ±30PPM
• SupplyVoltage: 3.3V
• Output: CMOS
• Applications:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.00mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
