B82793C0475N265 CHOKE COMMON MODE 4.7mH 400mA 7.1x6mm SMD

B82793C0475N265 CHOKE COMMON MODE 4.7mH 400mA 7.1x6mm SMD Description

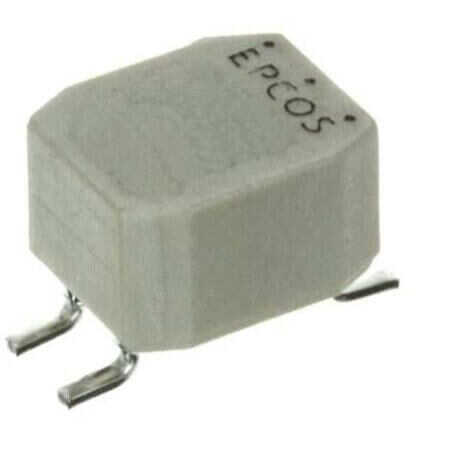

B82793C0475N265 CHOKE COMMON MODE 4.7mH 400mA 7.1x6mm SMD The product B82793C0475N265 (CHOKE COMMON MODE 4.7mH 400mA 7.1x6mm SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by EPCOS (TDK), it features an inductance of 4.7mH and a DC resistance of 550m Ohms. Built for Automotive(AEC-Q200), it is suitable for various applications. The compact design measures 7.10mm x 6.00mm x 4.80mm and operates within a temperature range of N/A. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

B82793C0475N265 CHOKE COMMON MODE 4.7mH 400mA 7.1x6mm SMD Technical Specifications

• Manufacturer: EPCOS (TDK)
• Series: B82793
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Signal Line Filter
• NumberofLines: 2
• Inductance: 4.7mH
• Impedance: None
• Current: 400mA
• Tolerance: ±30%
• DCResistance(DCR): 550m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 7.10mm
• Width: 6.00mm
• Height: 4.80mm
• OperationTemperature:
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
