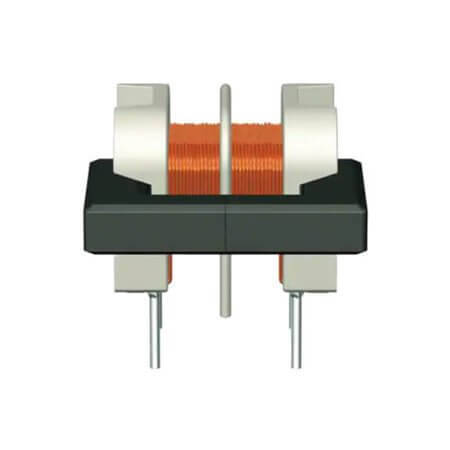

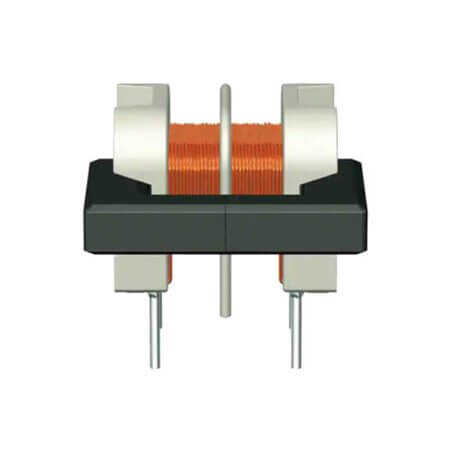

B82730G3601A020 COMMON MODE CHOKE 4.7MH 600mA 2LN VERTICAL

B82730G3601A020 COMMON MODE CHOKE 4.7MH 600mA 2LN VERTICAL Description

B82730G3601A020 COMMON MODE CHOKE 4.7MH 600mA 2LN VERTICAL The product B82730G3601A020 (COMMON MODE CHOKE 4.7MH 600mA 2LN VERTICAL) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by EPCOS (TDK), it features an inductance of 4.7mH and a DC resistance of 920m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 16.50mm x 15.00mm x 12.00mm and operates within a temperature range of N/A. Packaged in TRAY format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

B82730G3601A020 COMMON MODE CHOKE 4.7MH 600mA 2LN VERTICAL Technical Specifications

• Manufacturer: EPCOS (TDK)
• Series: B82730
• MountingType: THT
• Package/Case: Non Standard
• Pitch:
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: 4.7mH
• Impedance: None
• Current: 600mA
• Tolerance:
• DCResistance(DCR): 920m Ohms
• Applications: General Purpose
• Diameter:
• Length: 16.50mm
• Width: 15.00mm
• Height: 12.00mm
• OperationTemperature:
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
