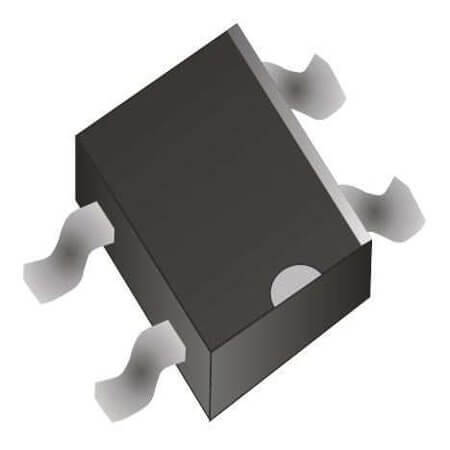

B2S_R2_00001 DIODE BRIDGE 800mA 200V 1PH MDI SMT GLASS PASSIVAT

B2S_R2_00001 DIODE BRIDGE 800mA 200V 1PH MDI SMT GLASS PASSIVAT Description

B2S_R2_00001 DIODE BRIDGE 800mA 200V 1PH MDI SMT GLASS PASSIVAT B2S_R2_00001 is a reliable and efficient bridge diode that featuring a peak reverse voltage of N/A and a forward current of N/A. Manufactured in N/A package with SMT mounting type. Offers excellent thermal stability with an operating temperature range of -55°C~+150°C.Compliant with ROHS standards, packaged as TAPE&REEL.

B2S_R2_00001 DIODE BRIDGE 800mA 200V 1PH MDI SMT GLASS PASSIVAT Technical Specifications

• Manufacturer: PANJIT
• Series: Standard
• DiodeType: Single Phase
• MountingType: SMT
• Package/Case: 4-SMD (MDI)
• Voltage-PeakReverse(Max): 200V
• ReverseCurrent(25°C): 5uA
• Current-DCForward(If)(Max): 800mA
• Applications:
• OperatingTemperature: -55°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
