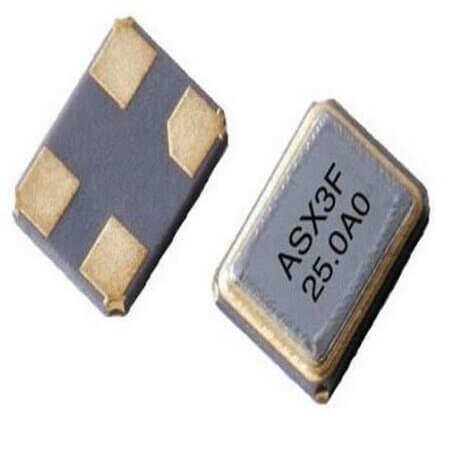

ASX3F-25M-FA180A2 CRYSTAL 25MHZ 18PF 10ppm

ASX3F-25M-FA180A2 CRYSTAL 25MHZ 18PF 10ppm Description

ASX3F-25M-FA180A2 CRYSTAL 25MHZ 18PF 10ppm ASX3F-25M-FA180A2 is a high-performance crystal component that operates at a frequency of 25MHz with a frequency stability of ±10PPM.Features equivalent series resistance (ESR) of 100 Ohms. Compact dimensions: length 3.40mm, width 2.70mm, and height 0.75mm. Supports a temperature range of -10°C~+70°C for reliable performance. Manufactured by ANSEN with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ASX3F-25M-FA180A2 CRYSTAL 25MHZ 18PF 10ppm Technical Specifications

• Manufacturer: ANSEN
• MountingType: SMT
• Series: ASX3F
• Package/Case: 4-SMD
• Frequency: 25MHz
• Capacitance: 18pF
• FrequencyTolerance: ±50PPM
• FrequencyStability: ±10PPM
• EquivalentSeriesResistance(ESR): 100 Ohms
• Applications:
• Diameter:
• Length: 3.40mm
• Width: 2.70mm
• Height: 0.75mm
• OperatingTemperature: -10°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
