ASX3F-20M-FA100A3 CRYSTAL 20MHZ 10pF SMD TR ANSEN

ASX3F-20M-FA100A3 CRYSTAL 20MHZ 10pF SMD TR ANSEN Description

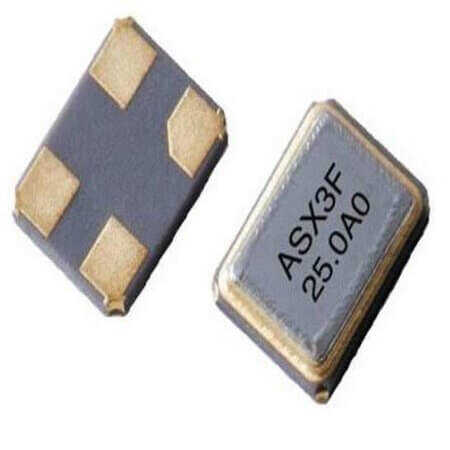

ASX3F-20M-FA100A3 CRYSTAL 20MHZ 10pF SMD TR ANSEN ASX3F-20M-FA100A3 is a high-performance crystal component that operates at a frequency of 20MHz with a frequency stability of ±10PPM.Features equivalent series resistance (ESR) of 100 Ohms. Compact dimensions: length 3.40mm, width 2.70mm, and height 0.75mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by ANSEN with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ASX3F-20M-FA100A3 CRYSTAL 20MHZ 10pF SMD TR ANSEN Technical Specifications

• Manufacturer: ANSEN
• MountingType: SMT
• Series: ASX3F
• Package/Case: 4-SMD
• Frequency: 20MHz
• Capacitance: 10pF
• FrequencyTolerance: ±50PPM
• FrequencyStability: ±10PPM
• EquivalentSeriesResistance(ESR): 100 Ohms
• Applications:
• Diameter:
• Length: 3.40mm
• Width: 2.70mm
• Height: 0.75mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
