ANT-W63-MSA-TH1 ANT WIFI6 2.4/5/6GHZ STAMPD TH

ANT-W63-MSA-TH1 ANT WIFI6 2.4/5/6GHZ STAMPD TH Description

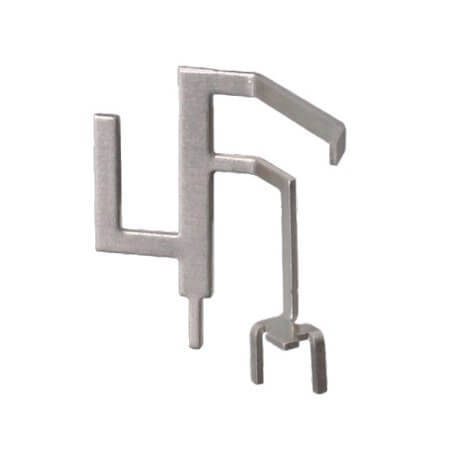

ANT-W63-MSA-TH1 ANT WIFI6 2.4/5/6GHZ STAMPD TH The product ANT-W63-MSA-TH1 (ANT WIFI6 2.4/5/6GHZ STAMPD TH) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a Stamped Metal type design with an impedance of N/A, it supports a wide frequency range of 2.4GHz to 2.5GHz, 5.15GHz to 5.895GHz, 5.95GHz to 7.125GHz. The antenna offers a gain of 3.5dBi, 3.8dBi, 3.8dBi and a VSWR of 1.9, 2.9, 3.2, ensuring efficient performance. Suitable for Bluetooth, ISM, Wi-Fi, WLAN, Zigbee, it has a compact height of 18.50mm and operates within a temperature range of N/A. Compliant with ROHS standards, it is packaged in TRAY format, making it ideal for modern communication systems.

ANT-W63-MSA-TH1 ANT WIFI6 2.4/5/6GHZ STAMPD TH Technical Specifications

• Manufacturer: LINX
• Gender: THT
• AntennaType: Stamped Metal
• Impedance:
• FrequencyRange: 2.4GHz to 2.5GHz, 5.15GHz to 5.895GHz, 5.95GHz to 7.125GHz
• Gain: 3.5dBi, 3.8dBi, 3.8dBi
• VSWR: 1.9, 2.9, 3.2
• Applications: Bluetooth, ISM, Wi-Fi, WLAN, Zigbee
• Height: 18.50mm
• OperatingTemperature:
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
