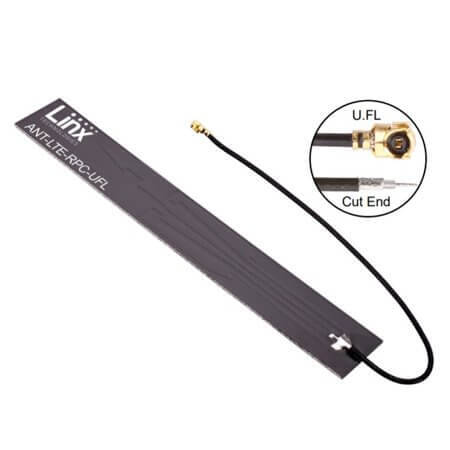

ANT-LTE-RPC-UFL ANTENNA LTE/LPWA DIPOLE UFL

ANT-LTE-RPC-UFL ANTENNA LTE/LPWA DIPOLE UFL Description

ANT-LTE-RPC-UFL ANTENNA LTE/LPWA DIPOLE UFL The product ANT-LTE-RPC-UFL (ANTENNA LTE/LPWA DIPOLE UFL) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a PCB Trace type design with an impedance of N/A, it supports a wide frequency range of 600MHz to 3800MHz. The antenna offers a gain of 3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi and a VSWR of 2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1, ensuring efficient performance. Suitable for 2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS, it has a compact height of 0.80mm and operates within a temperature range of -20°C~+65°C. Compliant with ROHS standards, it is packaged in BAG format, making it ideal for modern communication systems.

ANT-LTE-RPC-UFL ANTENNA LTE/LPWA DIPOLE UFL Technical Specifications

• Manufacturer: LINX
• Gender: i-PEX FEMALE
• AntennaType: PCB Trace
• Impedance:
• FrequencyRange: 600MHz to 3800MHz
• Gain: 3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi
• VSWR: 2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1
• Applications: 2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS
• Height: 0.80mm
• OperatingTemperature: -20°C~+65°C
• Rohs: ROHS
• Packaging: BAG

---

You can click for product datasheet.
