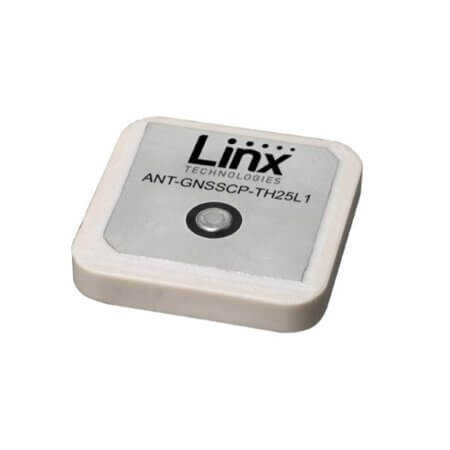

ANT-GNSSCP-TH25L1 RF ANT GNSS PATCH L1 25X25 PIN

ANT-GNSSCP-TH25L1 RF ANT GNSS PATCH L1 25X25 PIN Description

ANT-GNSSCP-TH25L1 RF ANT GNSS PATCH L1 25X25 PIN The product ANT-GNSSCP-TH25L1 (RF ANT GNSS PATCH L1 25X25 PIN) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a CERAMIC PATCH type design with an impedance of 50 Ohm, it supports a wide frequency range of 1.567GHz to 1.609GHz. The antenna offers a gain of 3.5dBi, 4dBi, 4dBi and a VSWR of 5.6, 2.1, 1.7, ensuring efficient performance. Suitable for Beidou/Galileo/GLONASS/GNSS/GPS, it has a compact height of 4mm and operates within a temperature range of -40°C~+105°C. Compliant with ROHS standards, it is packaged in TRAY format, making it ideal for modern communication systems.

ANT-GNSSCP-TH25L1 RF ANT GNSS PATCH L1 25X25 PIN Technical Specifications

• Manufacturer: LINX
• Gender: NONE
• AntennaType: CERAMIC PATCH
• Impedance: 50 Ohm
• FrequencyRange: 1.567GHz to 1.609GHz
• Gain: 3.5dBi, 4dBi, 4dBi
• VSWR: 5.6, 2.1, 1.7
• Applications: Beidou/Galileo/GLONASS/GNSS/GPS
• Height: 4mm
• OperatingTemperature: -40°C~+105°C
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
