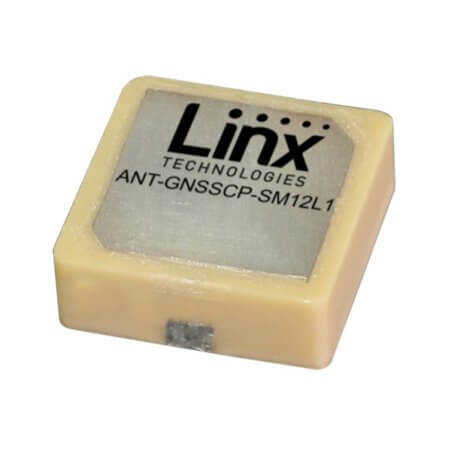

ANT-GNSSCP-SM12L1 ANTENNA GPS/GNSS 1567.24MHz/1583.6MHz CERAMIC PATC

ANT-GNSSCP-SM12L1 ANTENNA GPS/GNSS 1567.24MHz/1583.6MHz CERAMIC PATC Description

ANT-GNSSCP-SM12L1 ANTENNA GPS/GNSS 1567.24MHz/1583.6MHz CERAMIC PATC The product ANT-GNSSCP-SM12L1 (ANTENNA GPS/GNSS 1567.24MHz/1583.6MHz CERAMIC PATC) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a CERAMIC PATCH type design with an impedance of 50 Ohm, it supports a wide frequency range of 1.567GHz to 1.609GHz. The antenna offers a gain of 2.9dBi, 1dBi and a VSWR of 7, 6.1, ensuring efficient performance. Suitable for Beidou, Galileo, GLONASS, GNSS, GPS, it has a compact height of N/A and operates within a temperature range of -40°C~+105°C. Compliant with ROHS standards, it is packaged in TAPE&REEL format, making it ideal for modern communication systems.

ANT-GNSSCP-SM12L1 ANTENNA GPS/GNSS 1567.24MHz/1583.6MHz CERAMIC PATC Technical Specifications

• Manufacturer: LINX
• Gender: NONE
• AntennaType: CERAMIC PATCH
• Impedance: 50 Ohm
• FrequencyRange: 1.567GHz to 1.609GHz
• Gain: 2.9dBi, 1dBi
• VSWR: 7, 6.1
• Applications: Beidou, Galileo, GLONASS, GNSS, GPS
• Height:
• OperatingTemperature: -40°C~+105°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
