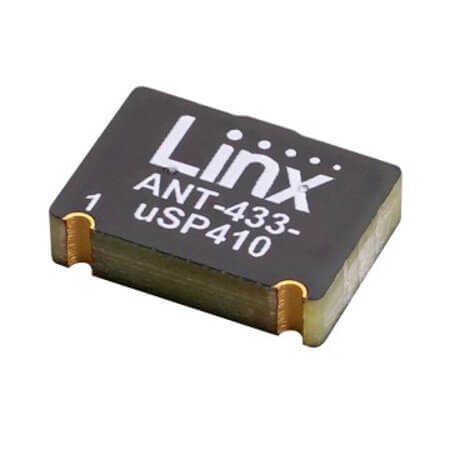

ANT-433-USP410 RF ANT 433MHZ CHIP SOLDER SMD

ANT-433-USP410 RF ANT 433MHZ CHIP SOLDER SMD Description

ANT-433-USP410 RF ANT 433MHZ CHIP SOLDER SMD The product ANT-433-USP410 (RF ANT 433MHZ CHIP SOLDER SMD) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a CHIP type design with an impedance of 50 Ohm, it supports a wide frequency range of 430MHz to 435MHz. The antenna offers a gain of -8dBi and a VSWR of <= 2.2, ensuring efficient performance. Suitable for ISM, LoRaWAN, LPWA, it has a compact height of 13.2 x 9.1 x 2.9 mm and operates within a temperature range of -40°C~+130°C. Compliant with N/A standards, it is packaged in TAPE&REEL format, making it ideal for modern communication systems.

ANT-433-USP410 RF ANT 433MHZ CHIP SOLDER SMD Technical Specifications

• Manufacturer: LINX
• Gender: SMT
• AntennaType: CHIP
• Impedance: 50 Ohm
• FrequencyRange: 430MHz to 435MHz
• Gain: -8dBi
• VSWR: <= 2.2
• Applications: ISM, LoRaWAN, LPWA
• Height: 13.2 x 9.1 x 2.9 mm
• OperatingTemperature: -40°C~+130°C
• Rohs:
• Packaging: TAPE&REEL

---

You can click for product datasheet.
