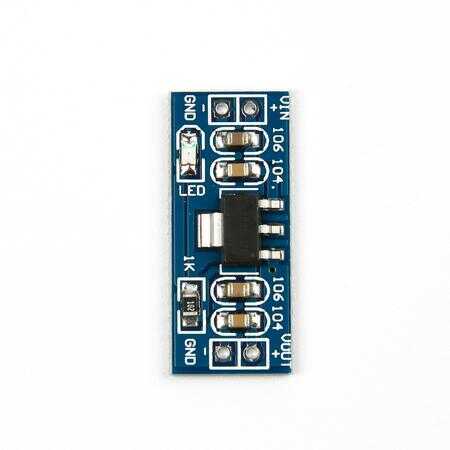

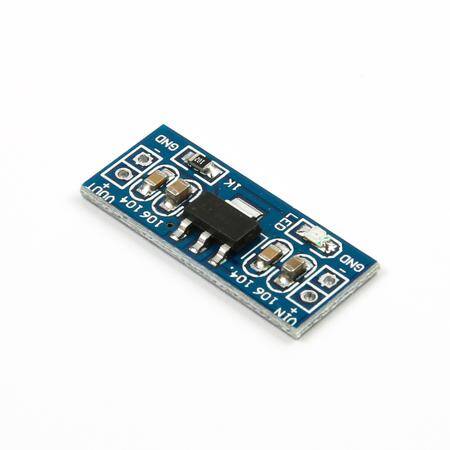

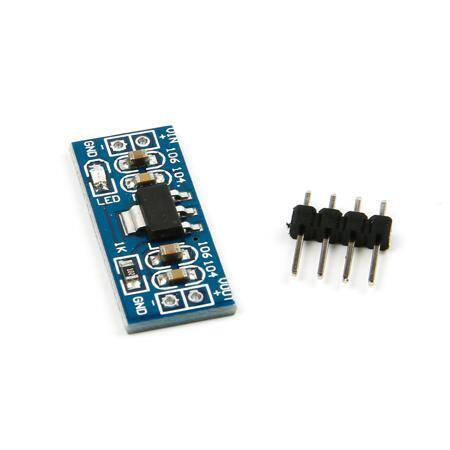

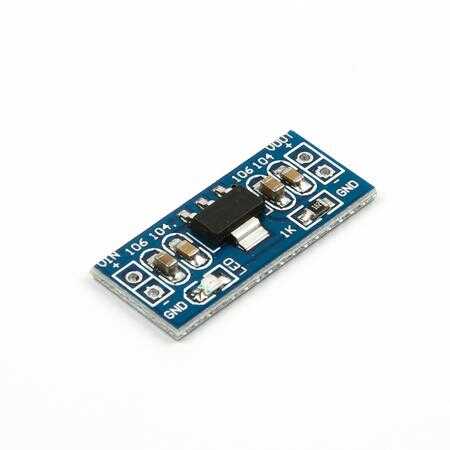

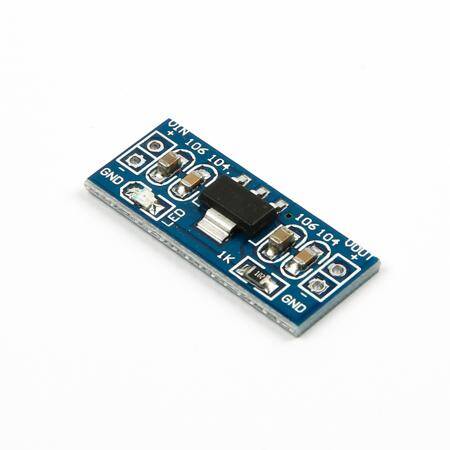

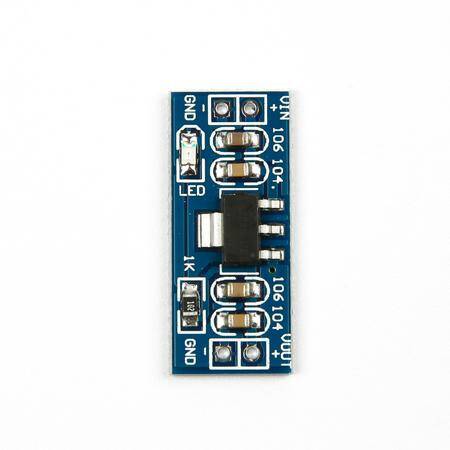

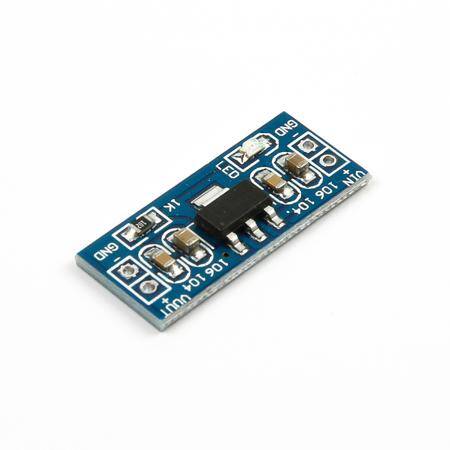

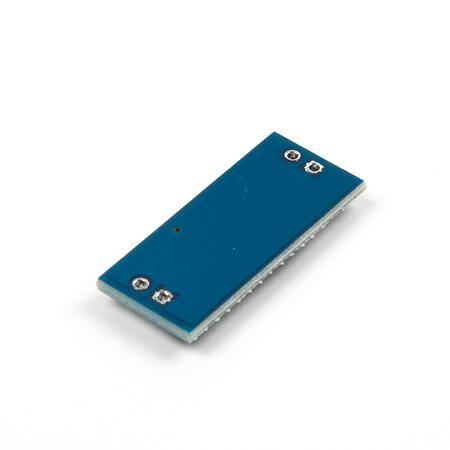

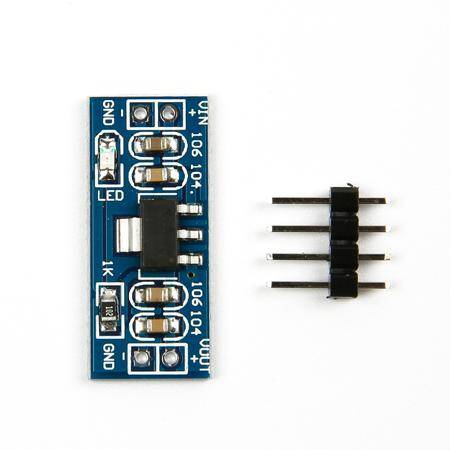

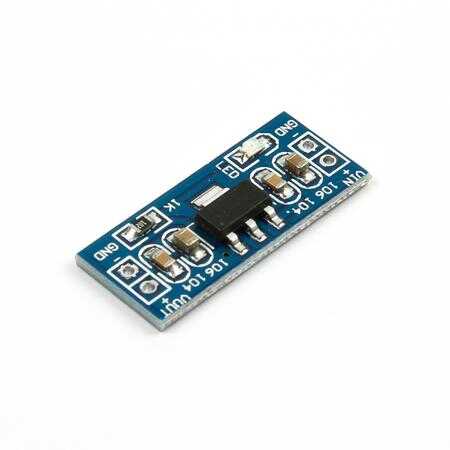

AMS1117 3.3V Power Supply Module

AMS1117 3.3V Power Supply Module Description

The AMS1117 3.3V Power Supply Module is a compact and efficient voltage regulator designed to step down higher input voltages to a stable 3.3V output. With a current capacity of up to 800mA, this module is perfect for powering microcontrollers, sensors, and other low-voltage devices. Its low dropout linear regulator ensures reliable performance and is ideal for a wide range of applications in embedded systems, IoT devices, and prototyping projects.

AMS1117 3.3V Power Supply Module Features

• Stable Output Voltage: Provides a regulated 3.3V DC output.
• Wide Input Voltage Range: Accepts inputs from 4.5V to 7V DC.
• High Current Capacity: Delivers up to 800mA of output current.
• Low Dropout Design: Ensures high efficiency and reliable operation.
• Compact and Lightweight: Easily integrates into small projects and tight spaces.
• Thermal Protection: Includes safety features to prevent overheating.

AMS1117 3.3V Power Supply Module Specifications

• Input Voltage: 4.5V - 7V DC
• Output Voltage: 3.3V DC
• Current Capacity: Up to 800mA
• Dropout Voltage: 1.1V (maximum)
• Operating Temperature: -40°C to +125°C
• Module Dimensions: Compact and lightweight
• Pin Configuration: Input, Ground, Output

AMS1117 3.3V Power Supply Module Applications

• Microcontroller Projects: Provides reliable power for Arduino, ESP8266, and similar boards.
• IoT Devices: Powers sensors, communication modules, and other low-voltage components.
• Embedded Systems: Ensures stable voltage for circuit boards and integrated systems.
• Prototyping: Ideal for breadboard projects and electronic experiments.
• Educational Use: Perfect for learning about voltage regulation and electronics design.
