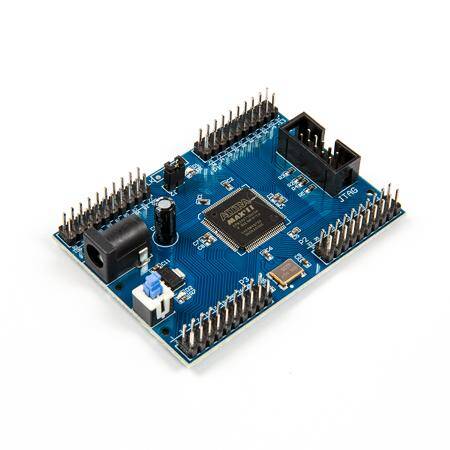

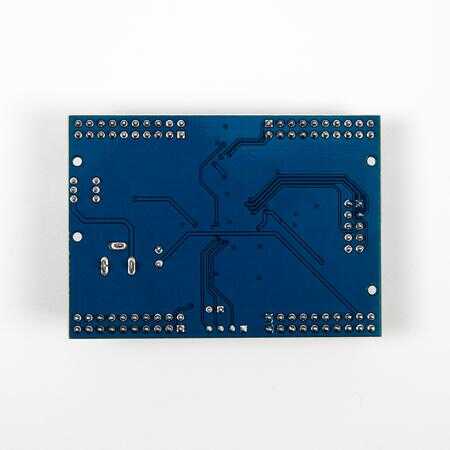

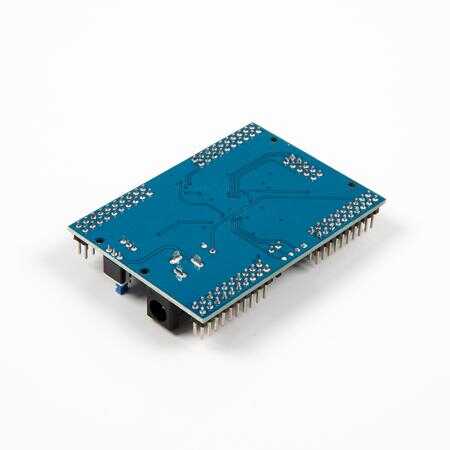

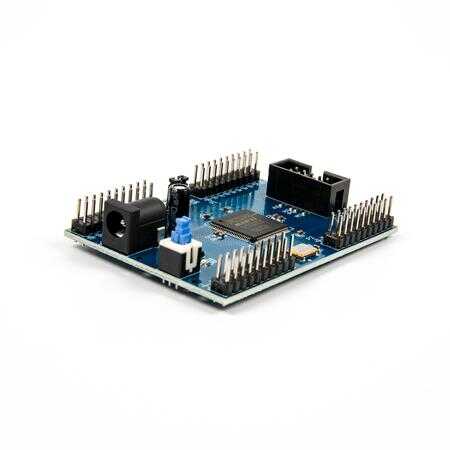

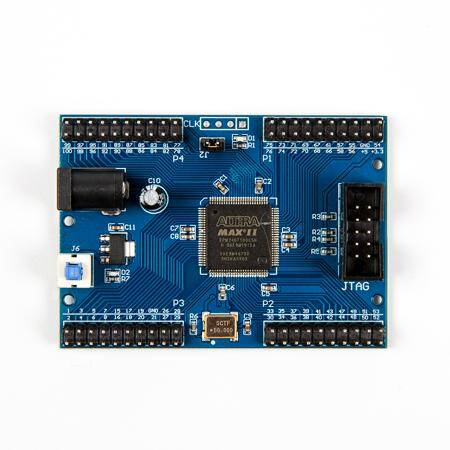

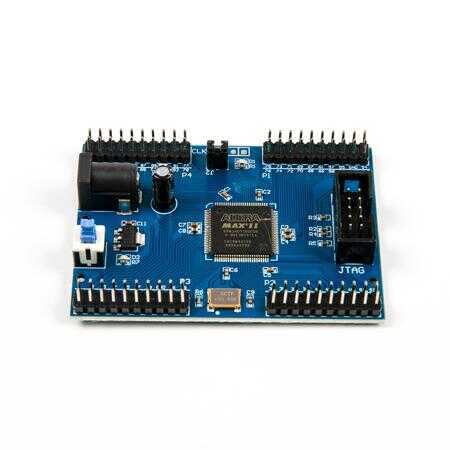

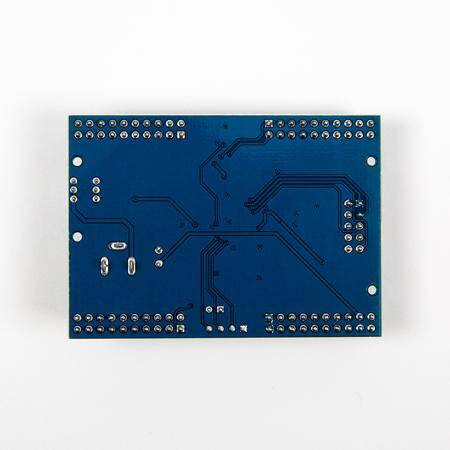

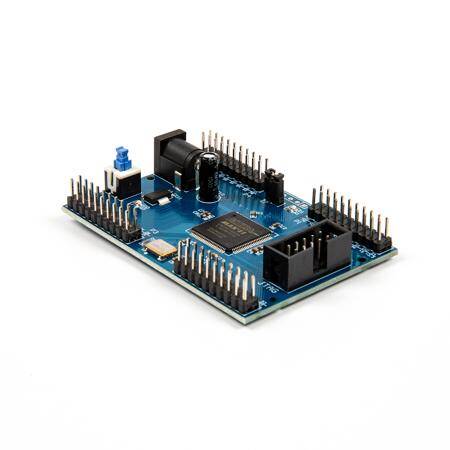

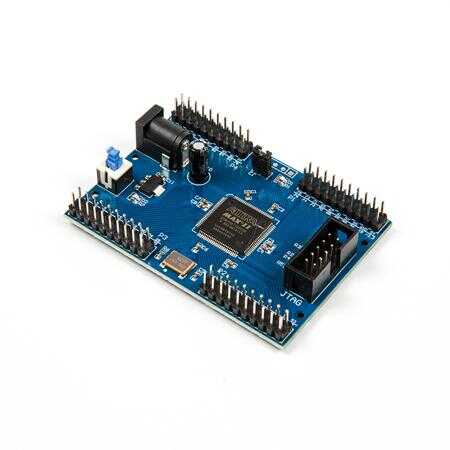

Altera MAX II EPM240 CPLD Development Board

Altera MAX II EPM240 CPLD Development Board Description

The Altera MAX II EPM240 CPLD Development Board is a powerful and flexible development platform based on the MAX II family of Complex Programmable Logic Devices (CPLD). It offers an excellent solution for designers working on digital logic systems, providing high-performance processing and customizable logic functions. With 240 macrocells, the MAX II CPLD allows for a wide range of applications, including digital signal processing, control systems, and more. This board is ideal for prototyping and developing complex logic systems in both educational and professional settings.

Altera MAX II EPM240 CPLD Features

• 240 Macrocells: Provides ample programmable resources for building complex logic circuits and systems.
• Low Power Consumption: MAX II CPLDs are known for their efficient power usage, making them ideal for battery-powered or low-power applications.
• Flexible Development Platform: Supports a wide range of logic design applications, from simple combinatorial logic to more advanced state machines.
• Easy Integration: Compatible with various development tools and software environments, making it easy to implement in projects.

Altera MAX II EPM240 CPLD Specifications

• Device Family: MAX II CPLD
• Logic Cells: 240 macrocells
• Power Supply: Typically 3.3V
• Programming Tools: Compatible with Altera Quartus II for design and programming
• Applications: Digital systems design, control systems, signal processing, prototyping, and more.

Altera MAX II EPM240 CPLD Applications

• Digital Logic Design: Use for designing custom digital circuits, from simple gates to complex state machines and controllers.
• Prototyping: Ideal for rapid prototyping of logic systems in both education and industry.
• Control Systems: Perfect for embedded control systems and digital logic-based automation projects.
