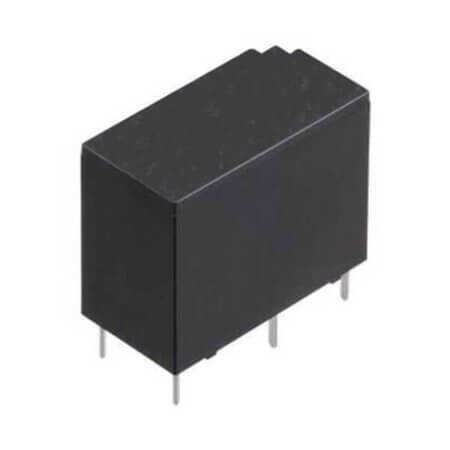

ALQ106A01 RELAY POWER 10A 6VDC 1FormC PANASONIC

ALQ106A01 RELAY POWER 10A 6VDC 1FormC PANASONIC Description

ALQ106A01 RELAY POWER 10A 6VDC 1FormC PANASONIC ALQ106A01 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC - Max and coil resistance of 90 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.00mm, width 10.00mm, and height 15.60mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ALQ106A01 RELAY POWER 10A 6VDC 1FormC PANASONIC Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Small
• Series: ALQ
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 10A
• CoilVoltage: 6VDC
• CoilCurrent: 66.70mA
• ContactVoltage: 250VAC - Max
• CoilResistance: 90 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 20.00mm
• Width: 10.00mm
• Height: 15.60mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
