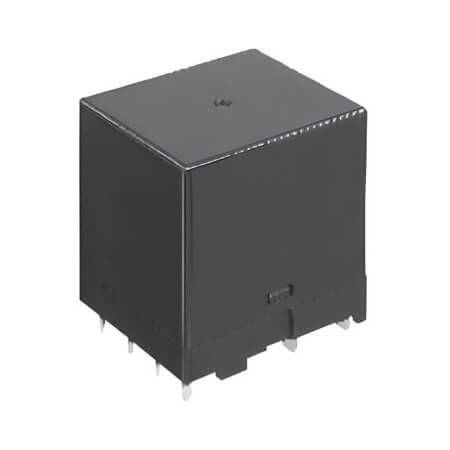

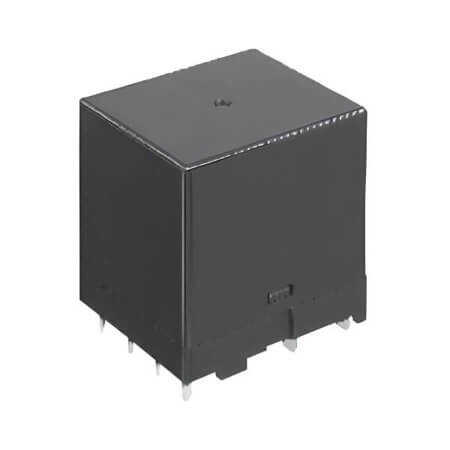

AHES3292 RELAY POWER 35A 24V 2FormA

AHES3292 RELAY POWER 35A 24V 2FormA Description

AHES3292 RELAY POWER 35A 24V 2FormA AHES3292 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 306.40 Ohms. Features a coil power of 1.88mW and operates within a temperature range of nan.Compact design with dimensions: length 36.00mm, width 30.00mm, and height 40.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

AHES3292 RELAY POWER 35A 24V 2FormA Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: AHES
• MountingType: THT
• ContactForm: DPST-NO (2 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 40A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 78mA
• ContactVoltage: 277VAC
• CoilResistance: 306.40 Ohms
• CoilPower: 1.88mW
• OperatingTemperature:
• NumberofPins: 6 Pin
• Length: 36.00mm
• Width: 30.00mm
• Height: 40.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
