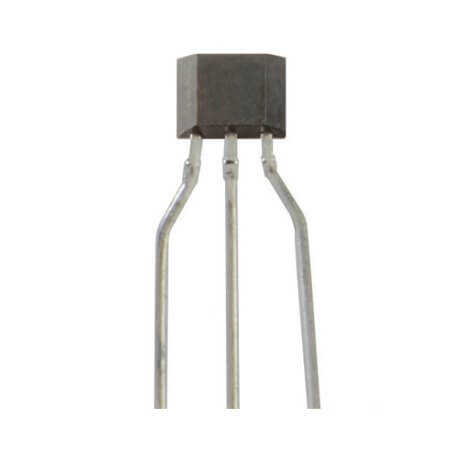

AH3582-P-A SENSOR MAGNETIC SWITCH OMNIPOLAR 3SIP

AH3582-P-A SENSOR MAGNETIC SWITCH OMNIPOLAR 3SIP Description

AH3582-P-A SENSOR MAGNETIC SWITCH OMNIPOLAR 3SIP The product AH3582-P-A (SENSOR MAGNETIC SWITCH OMNIPOLAR 3SIP) is a high-performance magnetic sensor designed for accurate and reliable measurements. Leveraging Hall Effect technology, it features an output type of Push-Pull and operates within a supply voltage range of 3V to 28V. With a supply current of 4mA and an output current of 55mA, this sensor ensures efficient and stable operation. It supports a sensing range of ±6mT Trip, ±1mT Release and functions effectively across an operating temperature range of -40°C~+125°C. Packaged in TAPE&BOX format and compliant with ROHS standards, it is an excellent choice for modern electronic applications.

AH3582-P-A SENSOR MAGNETIC SWITCH OMNIPOLAR 3SIP Technical Specifications

• Manufacturer: DIODES
• Features: High Voltage High Sensitivity Hall Effect Omnipolar With Internal Pull_Up Resistor
• MountingType: THT
• Package/Case: SIP3
• Function: Omnipolar Switch
• OutputTime(Rise/Fall): 200ns/100ns
• ManyeticFluxDensity:
• Polarization: North Pole, South Pole
• Technology: Hall Effect
• OutputType: Push-Pull
• SupplyVoltage: 3V to 28V
• SupplyCurrent: 4mA
• CurrentOutput: 55mA
• OutputVoltage:
• SensingRange: ±6mT Trip, ±1mT Release
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&BOX

---

You can click for product datasheet.
