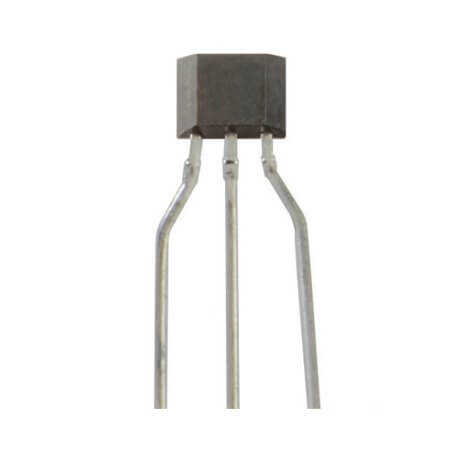

AH1807-P-A MAGNETIC SWITCH UNIPOLAR 3-SIP

AH1807-P-A MAGNETIC SWITCH UNIPOLAR 3-SIP Description

AH1807-P-A MAGNETIC SWITCH UNIPOLAR 3-SIP The product AH1807-P-A (MAGNETIC SWITCH UNIPOLAR 3-SIP) is a high-performance magnetic sensor designed for accurate and reliable measurements. Leveraging Hall Effect technology, it features an output type of Open Drain and operates within a supply voltage range of 2.5V to 5.5V. With a supply current of 16uA and an output current of 2.5mA, this sensor ensures efficient and stable operation. It supports a sensing range of ±11.5mT Trip, ±10mT Release and functions effectively across an operating temperature range of -40°C~+125°C. Packaged in TAPE&BOX format and compliant with ROHS standards, it is an excellent choice for modern electronic applications.

AH1807-P-A MAGNETIC SWITCH UNIPOLAR 3-SIP Technical Specifications

• Manufacturer: DIODES
• Features: Medium Sensitivity Micropower Omniploar Hall-Effect Switch
• MountingType: THT
• Package/Case: SIP3
• Function: Omnipolar Switch
• OutputTime(Rise/Fall):
• ManyeticFluxDensity:
• Polarization: North Pole, South Pole
• Technology: Hall Effect
• OutputType: Open Drain
• SupplyVoltage: 2.5V to 5.5V
• SupplyCurrent: 16uA
• CurrentOutput: 2.5mA
• OutputVoltage:
• SensingRange: ±11.5mT Trip, ±10mT Release
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&BOX

---

You can click for product datasheet.
