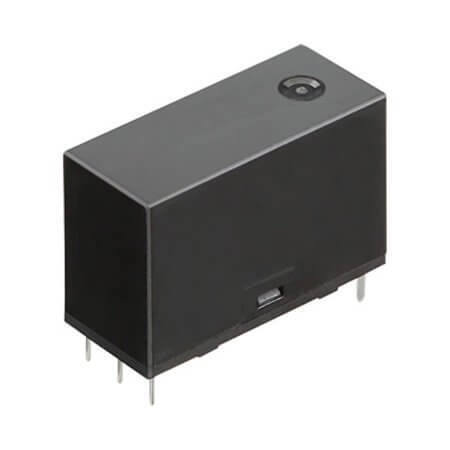

ADW1205HLW RELAY 16A 5VDC 2COIL INRUSH LATCH LOW PROFILE

ADW1205HLW RELAY 16A 5VDC 2COIL INRUSH LATCH LOW PROFILE Description

ADW1205HLW RELAY 16A 5VDC 2COIL INRUSH LATCH LOW PROFILE ADW1205HLW is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC and coil resistance of 62.50 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 24.00mm, width 10.00mm, and height 18.80mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

ADW1205HLW RELAY 16A 5VDC 2COIL INRUSH LATCH LOW PROFILE Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Latching
• Series: ADW1
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 8A
• ContactCurrent(Max): 16A
• CoilVoltage: 5VDC
• CoilCurrent: 80mA
• ContactVoltage: 277VAC
• CoilResistance: 62.50 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 24.00mm
• Width: 10.00mm
• Height: 18.80mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
