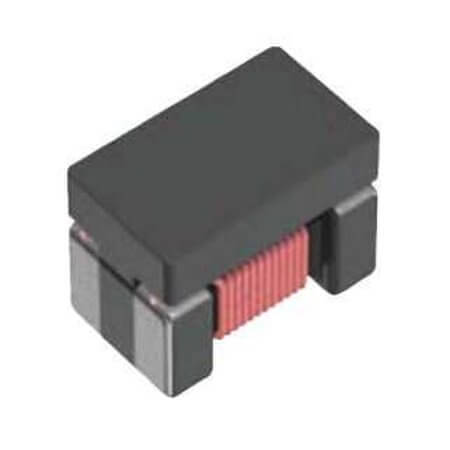

ACT45B-101-2P-TL003 CHOKE COMMON MODE CMC 51UH 200MA 2LN SMD AEC-Q200

ACT45B-101-2P-TL003 CHOKE COMMON MODE CMC 51UH 200MA 2LN SMD AEC-Q200 Description

ACT45B-101-2P-TL003 CHOKE COMMON MODE CMC 51UH 200MA 2LN SMD AEC-Q200 The product ACT45B-101-2P-TL003 (CHOKE COMMON MODE CMC 51UH 200MA 2LN SMD AEC-Q200) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by TDK, it features an inductance of 100uH and a DC resistance of 2 Ohms. Built for Automotive(AEC-Q200), it is suitable for various applications. The compact design measures 4.50mm x 3.20mm x 3.00mm and operates within a temperature range of -40°C ~ +150°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

ACT45B-101-2P-TL003 CHOKE COMMON MODE CMC 51UH 200MA 2LN SMD AEC-Q200 Technical Specifications

• Manufacturer: TDK
• Series: ACT
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: 100uH
• Impedance: 5.8K Ohms
• Current: 150mA
• Tolerance:
• DCResistance(DCR): 2 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 4.50mm
• Width: 3.20mm
• Height: 3.00mm
• OperationTemperature: -40°C ~ +150°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
