ACT1210-510-2P-TL00 CMC 51UH 200MA 2LN SMD AEC-Q200

ACT1210-510-2P-TL00 CMC 51UH 200MA 2LN SMD AEC-Q200 Description

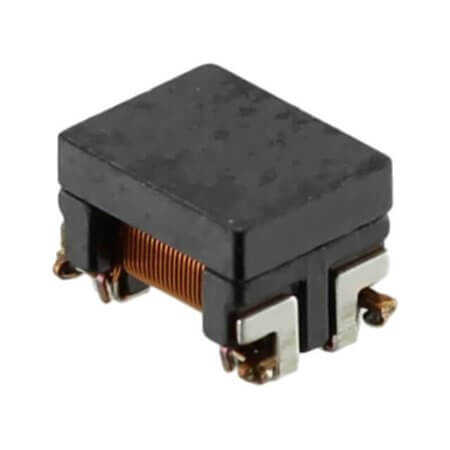

ACT1210-510-2P-TL00 CMC 51UH 200MA 2LN SMD AEC-Q200 The product ACT1210-510-2P-TL00 (CMC 51UH 200MA 2LN SMD AEC-Q200) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by TDK, it features an inductance of 51uH and a DC resistance of 700m Ohms. Built for Automotive(AEC-Q200), it is suitable for various applications. The compact design measures 3.90mm x 2.50mm x 2.50mm and operates within a temperature range of -55°C ~ +150°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

ACT1210-510-2P-TL00 CMC 51UH 200MA 2LN SMD AEC-Q200 Technical Specifications

• Manufacturer: TDK
• Series: ACT
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Signal Line Filter
• NumberofLines: 2
• Inductance: 51uH
• Impedance: 2.6K Ohms
• Current: 200mA
• Tolerance: +50%/-30%
• DCResistance(DCR): 700m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 3.90mm
• Width: 2.50mm
• Height: 2.50mm
• OperationTemperature: -55°C ~ +150°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
