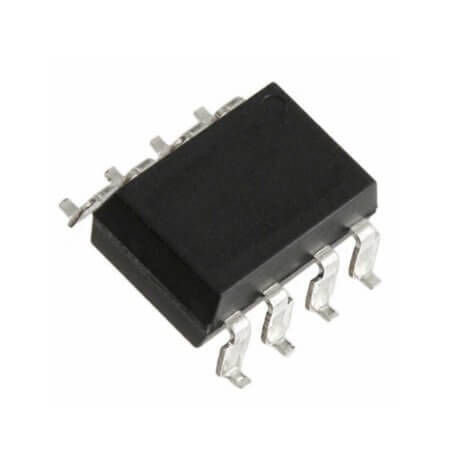

ACPL-824-360E OPTOISOLATOR 5KV 2CH TRANS 8SMD

ACPL-824-360E OPTOISOLATOR 5KV 2CH TRANS 8SMD Description

The ACPL-824-360E OPTOISOLATOR 5KV 2CH TRANS 8SMD The ACPL-824-360E by AVAGO-BROADCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 70V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 5000Vrms and a forward voltage of 1.2V, making it suitable for demanding applications. Operating in a temperature range of -30°C~+100°C, the ACPL-824-360E is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TUBE format, this optocoupler is the ideal choice for advanced electronic designs.

ACPL-824-360E OPTOISOLATOR 5KV 2CH TRANS 8SMD Technical Specifications

• Features: Multi-Channel Full-Pitch Phototransistor Optocoupler
• Manufacturer: AVAGO-BROADCOM
• MountingType: SMT
• Package   /Case: SMD8
• Number   ofChannel: 2
• Current   TransferRatio: %20 - %300
• OutputVoltage: 70V
• OutputCurrent: 50mA
• IsolationVoltage: 5000Vrms
• ForwardVoltage: 1.2V
• OperatingTemperature: -30°C~+100°C
• Rohs: ROHS
• Packaging: TUBE
