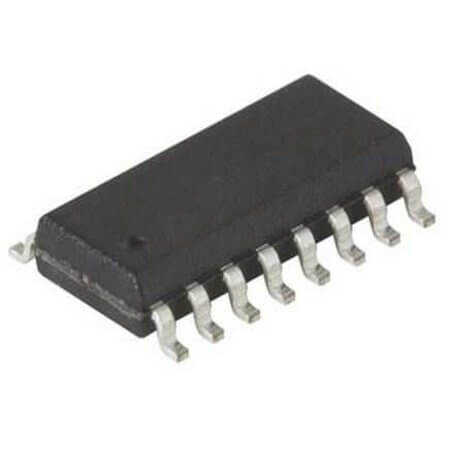

ACPL-247-500E IC-247 OPTOC.TRANS.3KV 4CH OUTPUT 16-SOIC

ACPL-247-500E IC-247 OPTOC.TRANS.3KV 4CH OUTPUT 16-SOIC Description

The ACPL-247-500E IC-247 OPTOC.TRANS.3KV 4CH OUTPUT 16-SOIC The ACPL-247-500E by AVAGO-BROADCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 80V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3000Vrms and a forward voltage of 1.2V, making it suitable for demanding applications. Operating in a temperature range of -55°C~+110°C, the ACPL-247-500E is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

ACPL-247-500E IC-247 OPTOC.TRANS.3KV 4CH OUTPUT 16-SOIC Technical Specifications

• Features: DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler
• Manufacturer: AVAGO-BROADCOM
• MountingType: SMT
• Package  /Case: SO16
• Number  ofChannel: 4
• Current  TransferRatio: %100 - %600
• OutputVoltage: 80V
• OutputCurrent: 50mA
• IsolationVoltage: 3000Vrms
• ForwardVoltage: 1.2V
• OperatingTemperature: -55°C~+110°C
• Rohs: ROHS
• Packaging: TAPE&REEL
