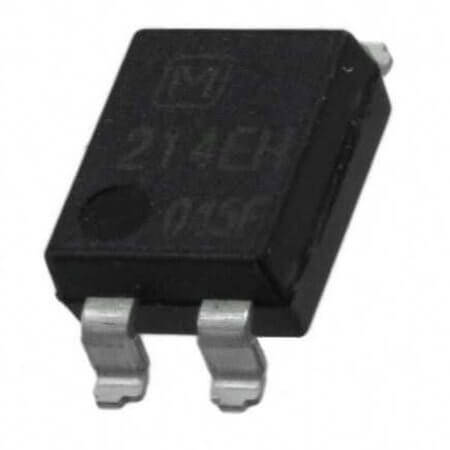

ACPL-217-56AE IC-217 OPTOC.TRANS.OUTPUT S04 AVAGO

ACPL-217-56AE IC-217 OPTOC.TRANS.OUTPUT S04 AVAGO Description

The ACPL-217-56AE IC-217 OPTOC.TRANS.OUTPUT S04 AVAGO The ACPL-217-56AE by AVAGO-BROADCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 80V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3000Vrms and a forward voltage of 1.4V, making it suitable for demanding applications. Operating in a temperature range of -55°C~+110°C, the ACPL-217-56AE is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

ACPL-217-56AE IC-217 OPTOC.TRANS.OUTPUT S04 AVAGO Technical Specifications

• Features: Half-Pitch Phototransistor Optocoupler
• Manufacturer: AVAGO-BROADCOM
• MountingType: SMT
• Package   /Case: SO4
• Number   ofChannel: 1
• Current   TransferRatio: %50 - %600
• OutputVoltage: 80V
• OutputCurrent: 50mA
• IsolationVoltage: 3000Vrms
• ForwardVoltage: 1.4V
• OperatingTemperature: -55°C~+110°C
• Rohs: ROHS
• Packaging: TAPE&REEL
