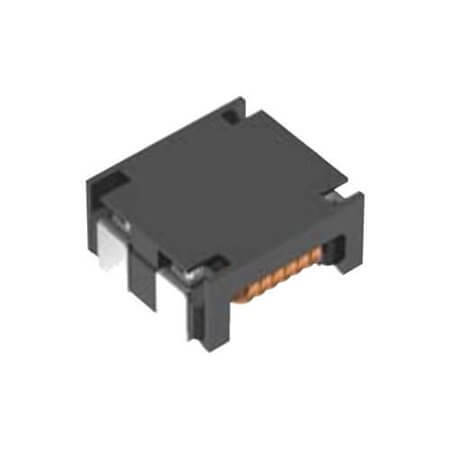

ACM12V-701-2PL-TL00 INDICTOR CMC 8A 2LN 700 OHM SMD AEC-Q200

ACM12V-701-2PL-TL00 INDICTOR CMC 8A 2LN 700 OHM SMD AEC-Q200 Description

ACM12V-701-2PL-TL00 INDICTOR CMC 8A 2LN 700 OHM SMD AEC-Q200 The product ACM12V-701-2PL-TL00 (INDICTOR CMC 8A 2LN 700 OHM SMD AEC-Q200) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by EPCOS (TDK), it features an inductance of None and a DC resistance of 6m Ohms. Built for Automotive(AEC-Q200), it is suitable for various applications. The compact design measures 12.00mm x 11.00mm x 6.00mm and operates within a temperature range of -40°C ~ +125°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

ACM12V-701-2PL-TL00 INDICTOR CMC 8A 2LN 700 OHM SMD AEC-Q200 Technical Specifications

• Manufacturer: EPCOS (TDK)
• Series: ACM
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: None
• Impedance: 700 Ohms
• Current: 8A
• Tolerance:
• DCResistance(DCR): 6m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 12.00mm
• Width: 11.00mm
• Height: 6.00mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
