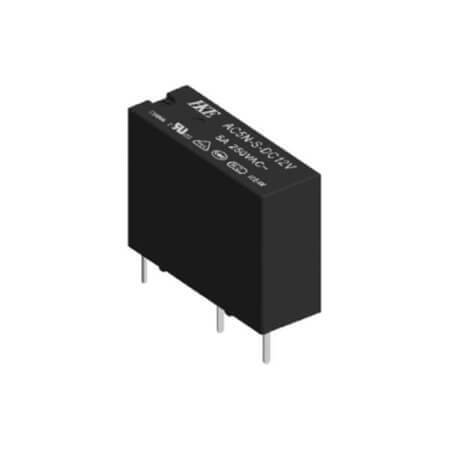

AC5N-S-DC12V RELAY POWER 5A 12VDC 1FormA

AC5N-S-DC12V RELAY POWER 5A 12VDC 1FormA Description

AC5N-S-DC12V RELAY POWER 5A 12VDC 1FormA AC5N-S-DC12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.00mm, width 7.00mm, and height 15.40mm.Manufactured by HKE and compliant with ROHS standards. Packaged as TRAY for convenience.

AC5N-S-DC12V RELAY POWER 5A 12VDC 1FormA Technical Specifications

• Manufacturer: HKE
• RelayType: Relay Power
• Series: AC5N
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 20.00mm
• Width: 7.00mm
• Height: 15.40mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
