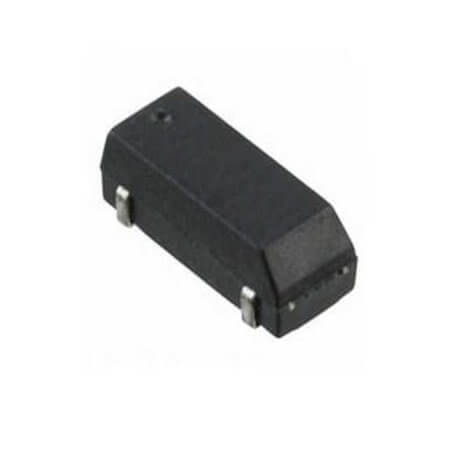

ABS25-32.768KHZ-6-1-T CRYSTAL 32.7680KHZ 6PF SMD

ABS25-32.768KHZ-6-1-T CRYSTAL 32.7680KHZ 6PF SMD Description

ABS25-32.768KHZ-6-1-T CRYSTAL 32.7680KHZ 6PF SMD ABS25-32.768KHZ-6-1-T is a high-performance crystal component that operates at a frequency of 32.768KHz with a frequency stability of nan.Features equivalent series resistance (ESR) of 50K Ohms. Compact dimensions: length 8.00mm, width 3.80mm, and height 2.50mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABS25-32.768KHZ-6-1-T CRYSTAL 32.7680KHZ 6PF SMD Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABS25
• Package/Case: 4-SOJ
• Frequency: 32.768KHz
• Capacitance: 6pF
• FrequencyTolerance: ±10PPM
• FrequencyStability:
• EquivalentSeriesResistance(ESR): 50K Ohms
• Applications:
• Diameter:
• Length: 8.00mm
• Width: 3.80mm
• Height: 2.50mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
