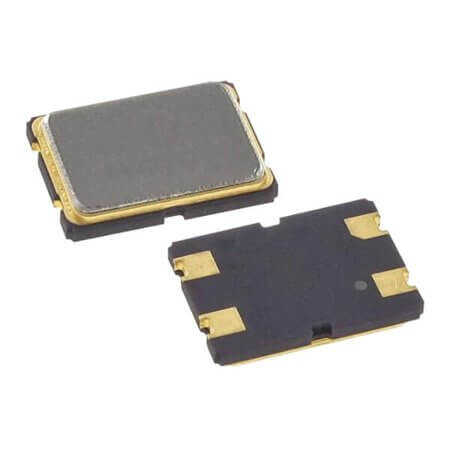

ABMM-6.000MHZ-B2-T CRYSTAL 6.0000MHZ 18PF SMD

ABMM-6.000MHZ-B2-T CRYSTAL 6.0000MHZ 18PF SMD Description

ABMM-6.000MHZ-B2-T CRYSTAL 6.0000MHZ 18PF SMD ABMM-6.000MHZ-B2-T is a high-performance crystal component that operates at a frequency of 6MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 70 Ohms. Compact dimensions: length 7.00mm, width 5.00mm, and height 1.30mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABMM-6.000MHZ-B2-T CRYSTAL 6.0000MHZ 18PF SMD Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABMM
• Package/Case: 4-SMD
• Frequency: 6MHz
• Capacitance: 18pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 70 Ohms
• Applications:
• Diameter:
• Length: 7.00mm
• Width: 5.00mm
• Height: 1.30mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
