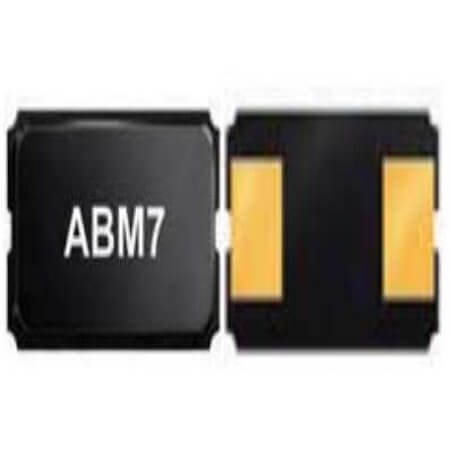

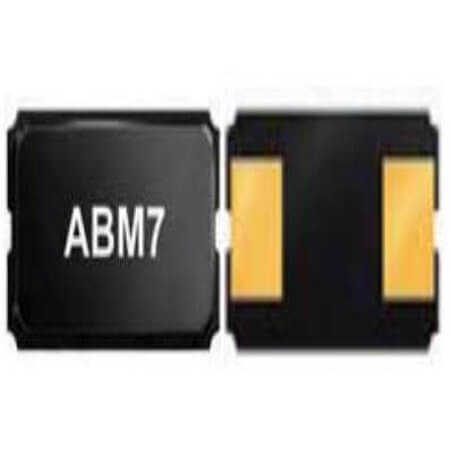

ABM7-9.8304MHZ-D2Y-T CRYSTAL 9.8304MHZ 18PF SMD

ABM7-9.8304MHZ-D2Y-T CRYSTAL 9.8304MHZ 18PF SMD Description

ABM7-9.8304MHZ-D2Y-T CRYSTAL 9.8304MHZ 18PF SMD ABM7-9.8304MHZ-D2Y-T is a high-performance crystal component that operates at a frequency of 9.8304MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 100 Ohms. Compact dimensions: length 6.00mm, width 3.50mm, and height 1.40mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABM7-9.8304MHZ-D2Y-T CRYSTAL 9.8304MHZ 18PF SMD Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABM7
• Package/Case: 2-SMD
• Frequency: 9.8304MHz
• Capacitance: 18pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 100 Ohms
• Applications:
• Diameter:
• Length: 6.00mm
• Width: 3.50mm
• Height: 1.40mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
