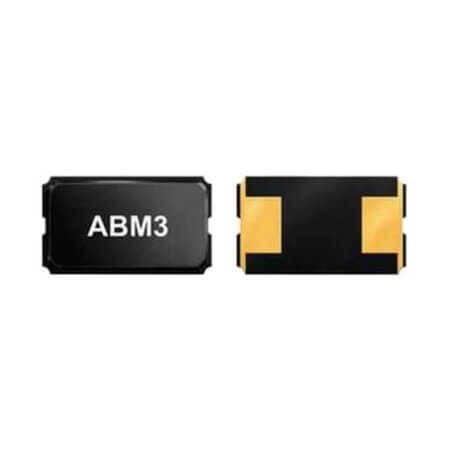

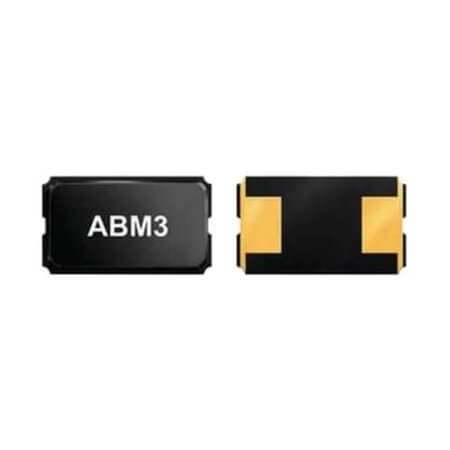

ABM3-20.000MHZ-D2Y-T CRYSTAL 20MHZ 5X3.2MM SMD ABRACON

ABM3-20.000MHZ-D2Y-T CRYSTAL 20MHZ 5X3.2MM SMD ABRACON Description

ABM3-20.000MHZ-D2Y-T CRYSTAL 20MHZ 5X3.2MM SMD ABRACON ABM3-20.000MHZ-D2Y-T is a high-performance crystal component that operates at a frequency of 20MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 30 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 1.30mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABM3-20.000MHZ-D2Y-T CRYSTAL 20MHZ 5X3.2MM SMD ABRACON Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABM3
• Package/Case: 2-SMD
• Frequency: 20MHz
• Capacitance: 18pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 30 Ohms
• Applications:
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.30mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
