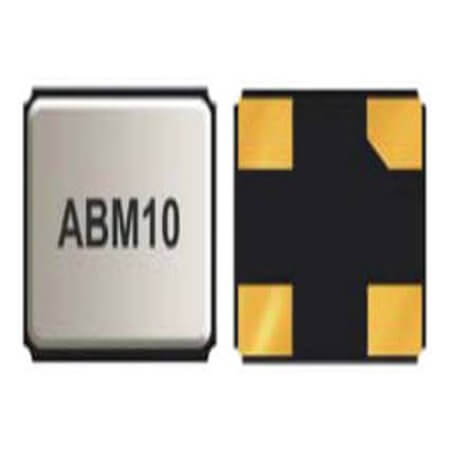

ABM10AIG-16.000MHZ-4Z-T3 CRYSTAL 16.0000MHZ 10PF SMD

ABM10AIG-16.000MHZ-4Z-T3 CRYSTAL 16.0000MHZ 10PF SMD Description

ABM10AIG-16.000MHZ-4Z-T3 CRYSTAL 16.0000MHZ 10PF SMD ABM10AIG-16.000MHZ-4Z-T3 is a high-performance crystal component that operates at a frequency of 16MHz with a frequency stability of ±50PPM.Features equivalent series resistance (ESR) of 80 Ohms. Compact dimensions: length 2.50mm, width 2.00mm, and height 0.50mm. Supports a temperature range of -40°C~+125°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABM10AIG-16.000MHZ-4Z-T3 CRYSTAL 16.0000MHZ 10PF SMD Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABM10
• Package/Case: 4-SMD
• Frequency: 16MHz
• Capacitance: 10pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±50PPM
• EquivalentSeriesResistance(ESR): 80 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 2.50mm
• Width: 2.00mm
• Height: 0.50mm
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
