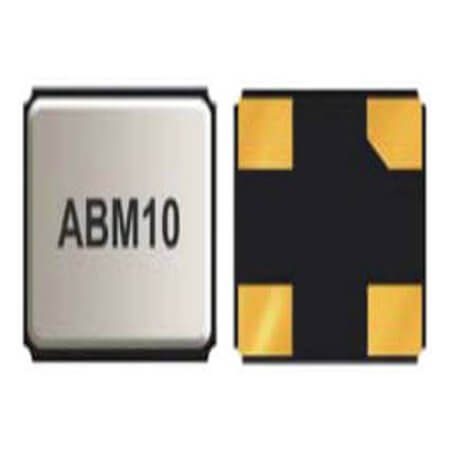

ABM10-167-12.000MHZ-T3 CRYSTAL 12.0000MHZ 8PF SMD

ABM10-167-12.000MHZ-T3 CRYSTAL 12.0000MHZ 8PF SMD Description

ABM10-167-12.000MHZ-T3 CRYSTAL 12.0000MHZ 8PF SMD ABM10-167-12.000MHZ-T3 is a high-performance crystal component that operates at a frequency of 12MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 125 Ohms. Compact dimensions: length 2.50mm, width 2.00mm, and height 0.50mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABM10-167-12.000MHZ-T3 CRYSTAL 12.0000MHZ 8PF SMD Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABM10
• Package/Case: 4-SMD
• Frequency: 12MHz
• Capacitance: 8pF
• FrequencyTolerance: ±10PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 125 Ohms
• Applications:
• Diameter:
• Length: 2.50mm
• Width: 2.00mm
• Height: 0.50mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
