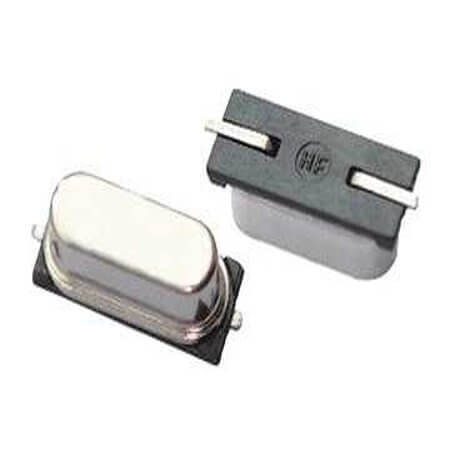

ABLS6M-27.000MHZ-D-2Y-T- CRYSTAL 6.7458MHZ 18PF SMD

ABLS6M-27.000MHZ-D-2Y-T- CRYSTAL 6.7458MHZ 18PF SMD Description

ABLS6M-27.000MHZ-D-2Y-T- CRYSTAL 6.7458MHZ 18PF SMD ABLS6M-27.000MHZ-D-2Y-T- is a high-performance crystal component that operates at a frequency of 27MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 60 Ohms. Compact dimensions: length 6.00mm, width 3.00mm, and height 1.90mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by ABRACON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

ABLS6M-27.000MHZ-D-2Y-T- CRYSTAL 6.7458MHZ 18PF SMD Technical Specifications

• Manufacturer: ABRACON
• MountingType: SMT
• Series: ABLS6M
• Package/Case: HC-49/USX
• Frequency: 27MHz
• Capacitance: 18pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications:
• Diameter:
• Length: 6.00mm
• Width: 3.00mm
• Height: 1.90mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
