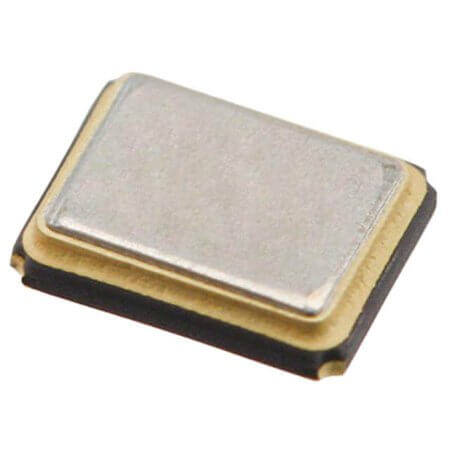

AB-10.000MALE-T CRYSTAL 10.0000MHZ 12PF SMD

AB-10.000MALE-T CRYSTAL 10.0000MHZ 12PF SMD Description

AB-10.000MALE-T CRYSTAL 10.0000MHZ 12PF SMD AB-10.000MALE-T is a high-performance crystal component that operates at a frequency of 10MHz with a frequency stability of ±150PPM.Features equivalent series resistance (ESR) of 100 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 0.90mm. Supports a temperature range of -40°C~+125°C for reliable performance. Manufactured by TXC with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

AB-10.000MALE-T CRYSTAL 10.0000MHZ 12PF SMD Technical Specifications

• Manufacturer: TXC
• MountingType: SMT
• Series: AB
• Package/Case: 2-SMD
• Frequency: 10MHz
• Capacitance: 12pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±150PPM
• EquivalentSeriesResistance(ESR): 100 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 0.90mm
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
