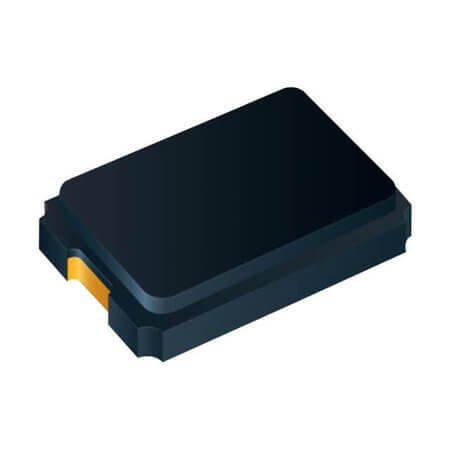

AA-8.000MALV-T- CRYSTAL 8MHz 8pF 30ppm SMD2

AA-8.000MALV-T- CRYSTAL 8MHz 8pF 30ppm SMD2 Description

AA-8.000MALV-T- CRYSTAL 8MHz 8pF 30ppm SMD2 AA-8.000MALV-T- is a high-performance crystal component that operates at a frequency of 8MHz with a frequency stability of ±150PPM.Features equivalent series resistance (ESR) of 150 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 1.20mm. Supports a temperature range of -40°C~+125°C for reliable performance. Manufactured by TXC with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

AA-8.000MALV-T- CRYSTAL 8MHz 8pF 30ppm SMD2 Technical Specifications

• Manufacturer: TXC
• MountingType: SMT
• Series: AA
• Package/Case: 2-SMD
• Frequency: 8MHz
• Capacitance: 8pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±150PPM
• EquivalentSeriesResistance(ESR): 150 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.20mm
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
