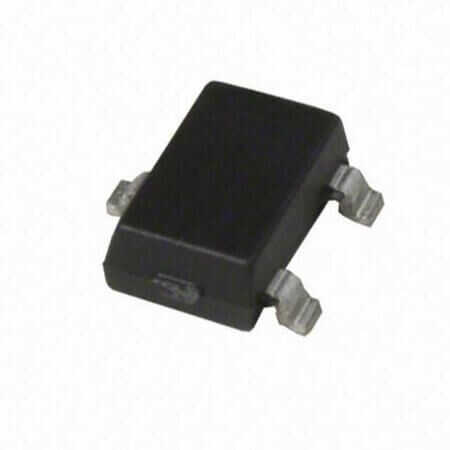

A1125ELHLT-T IC-1125 MAGNETIC SWITCH HALL EFFECT UNIPOLAR SOT23

A1125ELHLT-T IC-1125 MAGNETIC SWITCH HALL EFFECT UNIPOLAR SOT23 Description

A1125ELHLT-T IC-1125 MAGNETIC SWITCH HALL EFFECT UNIPOLAR SOT23 The product A1125ELHLT-T (IC-1125 MAGNETIC SWITCH HALL EFFECT UNIPOLAR SOT23) is a high-performance magnetic sensor designed for accurate and reliable measurements. Leveraging Hall Effect technology, it features an output type of Open Drain and operates within a supply voltage range of 3V to 24V. With a supply current of 4mA and an output current of 25mA, this sensor ensures efficient and stable operation. It supports a sensing range of 5mT Trip, 0.5mT Release and functions effectively across an operating temperature range of -40°C~+85°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an excellent choice for modern electronic applications.

A1125ELHLT-T IC-1125 MAGNETIC SWITCH HALL EFFECT UNIPOLAR SOT23 Technical Specifications

• Manufacturer: ALLEGRO
• Features: Chopper Stabilized Precision Hall-Effect Switches
• MountingType: SMT
• Package/Case: SOT23W
• Function: Unipolar Switch
• OutputTime(Rise/Fall):
• ManyeticFluxDensity:
• Polarization: South Pole
• Technology: Hall Effect
• OutputType: Open Drain
• SupplyVoltage: 3V to 24V
• SupplyCurrent: 4mA
• CurrentOutput: 25mA
• OutputVoltage:
• SensingRange: 5mT Trip, 0.5mT Release
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
