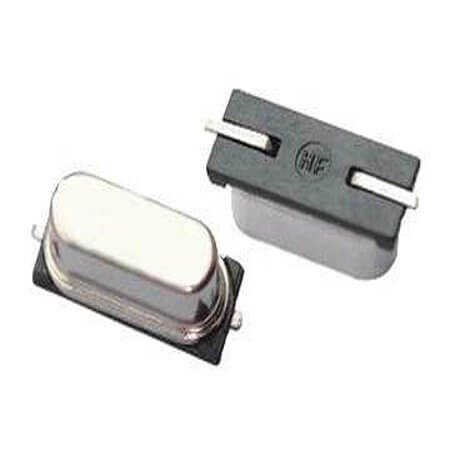

9C-6.000MAAJ-T CRYSTAL 6MHZ HC49SMT 18PF 30ppm SMD TXC

9C-6.000MAAJ-T CRYSTAL 6MHZ HC49SMT 18PF 30ppm SMD TXC Description

9C-6.000MAAJ-T CRYSTAL 6MHZ HC49SMT 18PF 30ppm SMD TXC 9C-6.000MAAJ-T is a high-performance crystal component that operates at a frequency of 6MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 80 Ohms. Compact dimensions: length 11.40mm, width 4.35mm, and height 3.80mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by TXC with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

9C-6.000MAAJ-T CRYSTAL 6MHZ HC49SMT 18PF 30ppm SMD TXC Technical Specifications

• Manufacturer: TXC
• MountingType: SMT
• Series: 9C
• Package/Case: HC-49/US
• Frequency: 6MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 80 Ohms
• Applications:
• Diameter:
• Length: 11.40mm
• Width: 4.35mm
• Height: 3.80mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
