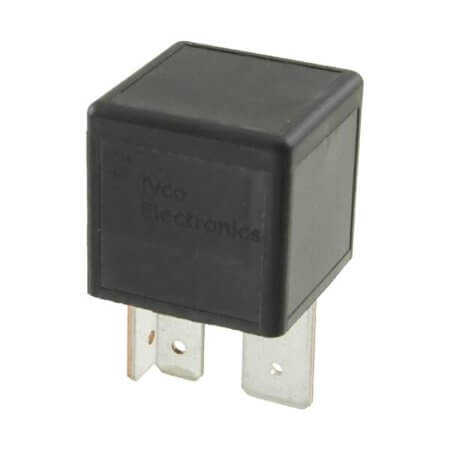

9-1393303-7 RELAY AUTOMOTIVE SPST-NO 70A 24V

9-1393303-7 RELAY AUTOMOTIVE SPST-NO 70A 24V Description

9-1393303-7 RELAY AUTOMOTIVE SPST-NO 70A 24V 9-1393303-7 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 24VDC and coil resistance of 324 Ohms. Features a coil power of 1.80W and operates within a temperature range of -40°C~+125°C.Compact design with dimensions: length 25.90mm, width 25.90mm, and height 24.90mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

9-1393303-7 RELAY AUTOMOTIVE SPST-NO 70A 24V Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Automotive
• Series:
• MountingType: Socket
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 70A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent:
• ContactVoltage: 24VDC
• CoilResistance: 324 Ohms
• CoilPower: 1.80W
• OperatingTemperature: -40°C~+125°C
• NumberofPins: 4 Pin
• Length: 25.90mm
• Width: 25.90mm
• Height: 24.90mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
