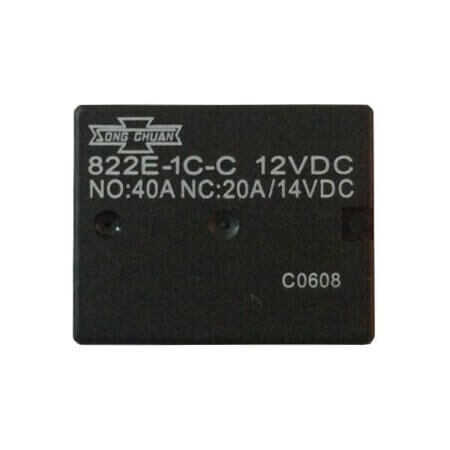

822E-1C-C-12VDC RELAY POWER 20A 12VDC AUTOMOTIVE FORM C SPDT

822E-1C-C-12VDC RELAY POWER 20A 12VDC AUTOMOTIVE FORM C SPDT Description

822E-1C-C-12VDC RELAY POWER 20A 12VDC AUTOMOTIVE FORM C SPDT 822E-1C-C-12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 14VDC and coil resistance of 90 Ohms. Features a coil power of 1.60W and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 26.60mm, width 21.40mm, and height 21.80mm.Manufactured by SONG CHUAN CO. and compliant with ROHS standards. Packaged as TUBE for convenience.

822E-1C-C-12VDC RELAY POWER 20A 12VDC AUTOMOTIVE FORM C SPDT Technical Specifications

• Manufacturer: SONG CHUAN CO.
• RelayType: Relay Automotive
• Series: 822
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 20A
• ContactCurrent(Max): 40A
• CoilVoltage: 12VDC
• CoilCurrent: 133mA
• ContactVoltage: 14VDC
• CoilResistance: 90 Ohms
• CoilPower: 1.60W
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 7 Pin
• Length: 26.60mm
• Width: 21.40mm
• Height: 21.80mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
