7M25070027 CRYSTAL 25MHZ 19PF SMD

7M25070027 CRYSTAL 25MHZ 19PF SMD Description

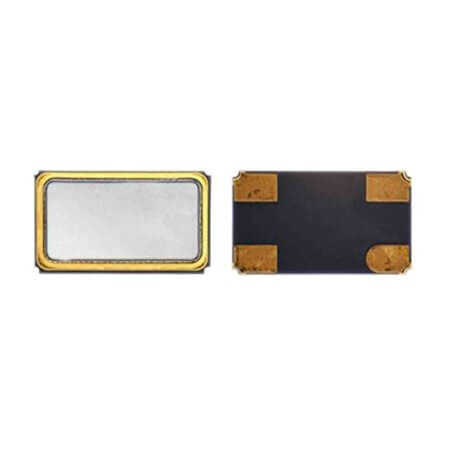

7M25070027 CRYSTAL 25MHZ 19PF SMD 7M25070027 is a high-performance crystal component that operates at a frequency of 25MHz with a frequency stability of ±25PPM.Features equivalent series resistance (ESR) of 60 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 0.70mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by TXC with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

7M25070027 CRYSTAL 25MHZ 19PF SMD Technical Specifications

• Manufacturer: TXC
• MountingType: SMT
• Series: 7M
• Package/Case: 4-SMD
• Frequency: 25MHz
• Capacitance: 19pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±25PPM
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.70mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
