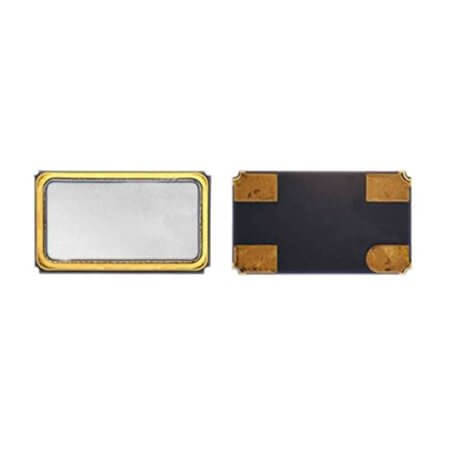

7M-26.000MEEQ-T CRYSTAL 26MHZ 10pF SMD

7M-26.000MEEQ-T CRYSTAL 26MHZ 10pF SMD Description

7M-26.000MEEQ-T CRYSTAL 26MHZ 10pF SMD 7M-26.000MEEQ-T is a high-performance crystal component that operates at a frequency of 26MHz with a frequency stability of ±10PPM.Features equivalent series resistance (ESR) of 60 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 0.70mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by TXC with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

7M-26.000MEEQ-T CRYSTAL 26MHZ 10pF SMD Technical Specifications

• Manufacturer: TXC
• MountingType: SMT
• Series: 7M
• Package/Case: 4-SMD
• Frequency: 26MHz
• Capacitance: 10pF
• FrequencyTolerance: ±10PPM
• FrequencyStability: ±10PPM
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.70mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
