7A-25.000MAAJ-T CRYSTAL 25MHZ 18PF TXC SMD-2

7A-25.000MAAJ-T CRYSTAL 25MHZ 18PF TXC SMD-2 Description

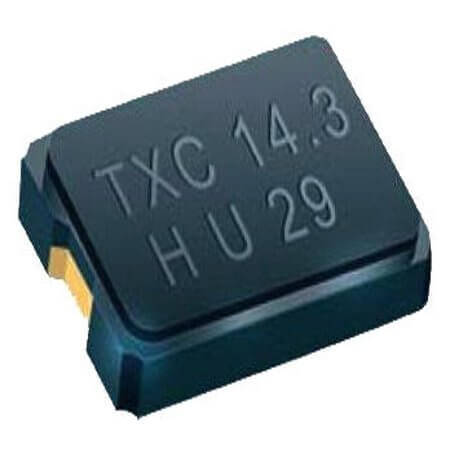

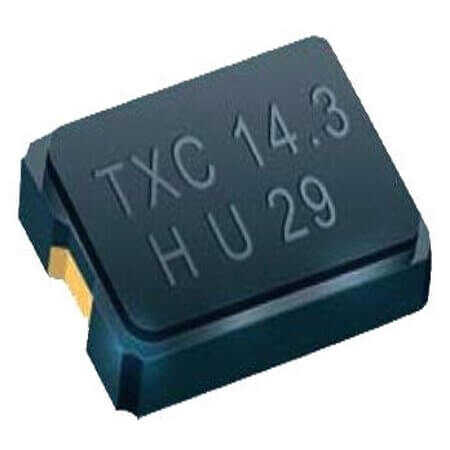

7A-25.000MAAJ-T CRYSTAL 25MHZ 18PF TXC SMD-2 7A-25.000MAAJ-T is a high-performance crystal component that operates at a frequency of 25MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 50 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 1.20mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by TXC with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

7A-25.000MAAJ-T CRYSTAL 25MHZ 18PF TXC SMD-2 Technical Specifications

• Manufacturer: TXC
• MountingType: SMT
• Series: 7A
• Package/Case: 2-SMD
• Frequency: 25MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 50 Ohms
• Applications:
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.20mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
