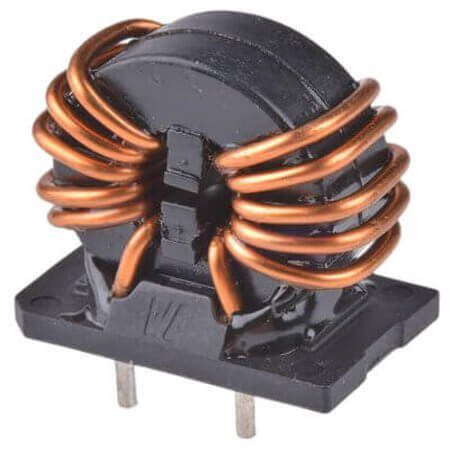

7448031002 CHOKE COMMON MODE CMC 2x2mH 10A (2 Hatlı)

7448031002 CHOKE COMMON MODE CMC 2x2mH 10A (2 Hatlı) Description

7448031002 CHOKE COMMON MODE CMC 2x2mH 10A (2 Hatlı) The product 7448031002 (CHOKE COMMON MODE CMC 2x2mH 10A (2 Hatlı)) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by WURTH, it features an inductance of 2mH and a DC resistance of 6m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 23.00mm x 17.00mm x 25.00mm and operates within a temperature range of -40°C ~ +125°C. Packaged in TRAY format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

7448031002 CHOKE COMMON MODE CMC 2x2mH 10A (2 Hatlı) Technical Specifications

• Manufacturer: WURTH
• Series: WE-CMBNC
• MountingType: THT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: 2mH
• Impedance: None
• Current: 10A
• Tolerance: ±50%
• DCResistance(DCR): 6m Ohms
• Applications: General Purpose
• Diameter:
• Length: 23.00mm
• Width: 17.00mm
• Height: 25.00mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
