744273222 CHOKE COMMON MODE CMC 30UH 1.4A 2LN 2.2 KOHM SMD

744273222 CHOKE COMMON MODE CMC 30UH 1.4A 2LN 2.2 KOHM SMD Description

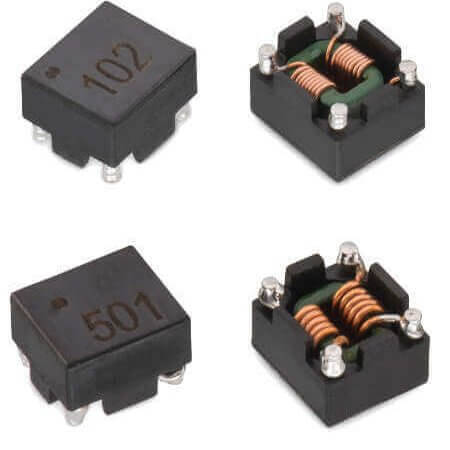

744273222 CHOKE COMMON MODE CMC 30UH 1.4A 2LN 2.2 KOHM SMD The product 744273222 (CHOKE COMMON MODE CMC 30UH 1.4A 2LN 2.2 KOHM SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by WURTH, it features an inductance of 30uH and a DC resistance of 60m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 9.50mm x 8.30mm x 5.30mm and operates within a temperature range of -40°C ~ +125°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

744273222 CHOKE COMMON MODE CMC 30UH 1.4A 2LN 2.2 KOHM SMD Technical Specifications

• Manufacturer: WURTH
• Series: WE-SL5
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology:
• Shielding: Shielded
• FilterType: Line Filter
• NumberofLines: 2
• Inductance: 30uH
• Impedance: 2.2K Ohms
• Current: 1.4A
• Tolerance: ±25%
• DCResistance(DCR): 60m Ohms
• Applications: General Purpose
• Diameter:
• Length: 9.50mm
• Width: 8.30mm
• Height: 5.30mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
