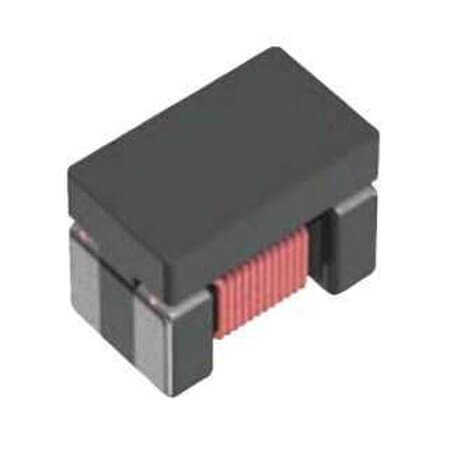

744231091 CHOKE COMMON MODE CMC 370MA 2LN 90 OHM SMD

744231091 CHOKE COMMON MODE CMC 370MA 2LN 90 OHM SMD Description

744231091 CHOKE COMMON MODE CMC 370MA 2LN 90 OHM SMD The product 744231091 (CHOKE COMMON MODE CMC 370MA 2LN 90 OHM SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by WURTH, it features an inductance of 131nH and a DC resistance of 300m Ohms. Built for Automotive(AEC-Q200), it is suitable for various applications. The compact design measures 2.00mm x 1.20mm x 1.20mm and operates within a temperature range of -40°C ~ +125°C. Packaged in TAPE&REEL format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

744231091 CHOKE COMMON MODE CMC 370MA 2LN 90 OHM SMD Technical Specifications

• Manufacturer: WURTH
• Series: WE-CNSW
• MountingType: SMT
• Package/Case: 0805 (2012 Metric)
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Signal Line Filter
• NumberofLines: 2
• Inductance: 131nH
• Impedance: 90 Ohms
• Current: 370mA
• Tolerance: ±25%
• DCResistance(DCR): 300m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 2.00mm
• Width: 1.20mm
• Height: 1.20mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
