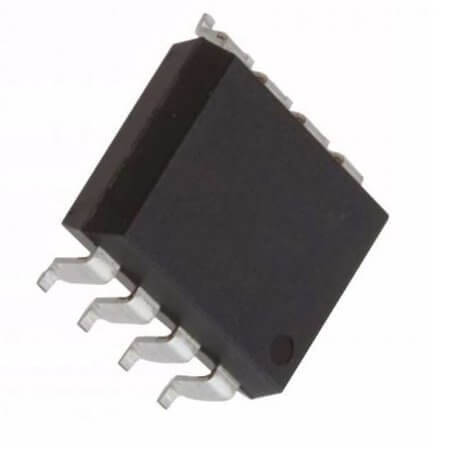

6N136-500E IC-6N136 OPTO 8PIN SMD TR AVAGO

6N136-500E IC-6N136 OPTO 8PIN SMD TR AVAGO Description

The 6N136-500E IC-6N136 OPTO 8PIN SMD TR AVAGO The 6N136-500E by AVAGO-BROADCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 20V and an output current of 8mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3750Vrms and a forward voltage of 1.5V, making it suitable for demanding applications. Operating in a temperature range of -55°C~+100°C, the 6N136-500E is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

6N136-500E IC-6N136 OPTO 8PIN SMD TR AVAGO Technical Specifications

• Features: High Speed Transistor Optocouplers
• Manufacturer: AVAGO-BROADCOM
• MountingType: SMT
• Package  /Case: SO8
• Number  ofChannel: 1
• Current  TransferRatio: %19 - %50
• OutputVoltage: 20V
• OutputCurrent: 8mA
• IsolationVoltage: 3750Vrms
• ForwardVoltage: 1.5V
• OperatingTemperature: -55°C~+100°C
• Rohs: ROHS
• Packaging: TAPE&REEL
