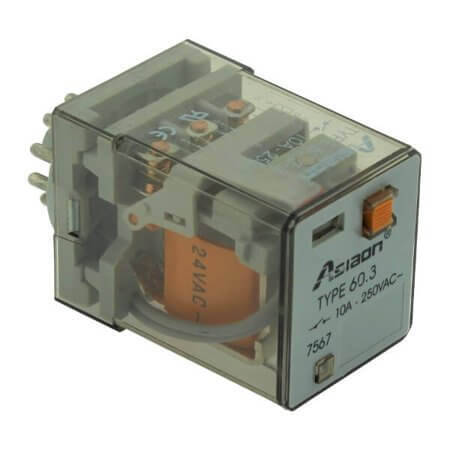

60.3-3-24VAC RELAY 10A 24VAC 3PNC 11PIN DRAGON

60.3-3-24VAC RELAY 10A 24VAC 3PNC 11PIN DRAGON Description

60.3-3-24VAC RELAY 10A 24VAC 3PNC 11PIN DRAGON 60.3-3-24VAC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 80 Ohms. Features a coil power of 2.50VA and operates within a temperature range of nan.Compact design with dimensions: length 37.00mm, width 33.00mm, and height 51.00mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TRAY for convenience.

60.3-3-24VAC RELAY 10A 24VAC 3PNC 11PIN DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series:
• MountingType: Socket
• ContactForm: 3PDT (3 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 24VAC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 80 Ohms
• CoilPower: 2.50VA
• OperatingTemperature:
• NumberofPins: 11 Pin
• Length: 37.00mm
• Width: 33.00mm
• Height: 51.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
