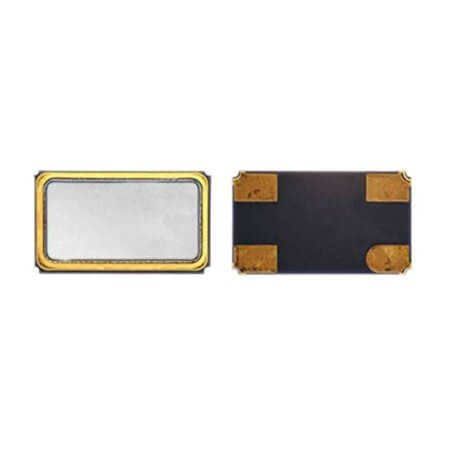

406I33E08M00000 CRYSTAL 8MHZ (FUND, 8MHZ, M)

406I33E08M00000 CRYSTAL 8MHZ (FUND, 8MHZ, M) Description

406I33E08M00000 CRYSTAL 8MHZ (FUND, 8MHZ, M) 406I33E08M00000 is a high-performance crystal component that operates at a frequency of 8MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 70 Ohms. Compact dimensions: length 6.00mm, width 3.50mm, and height 1.20mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by CTS with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

406I33E08M00000 CRYSTAL 8MHZ (FUND, 8MHZ, M) Technical Specifications

• Manufacturer: CTS
• MountingType: SMT
• Series: 406
• Package/Case: 4-SMD
• Frequency: 8MHz
• Capacitance: 20pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 70 Ohms
• Applications:
• Diameter:
• Length: 6.00mm
• Width: 3.50mm
• Height: 1.20mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---
