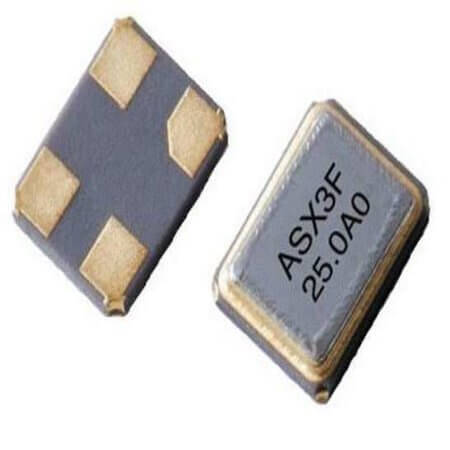

40602600176 CRYSTAL 26MHZ 15pF 20ppm 3.2x2.5X0.7mm SMD

40602600176 CRYSTAL 26MHZ 15pF 20ppm 3.2x2.5X0.7mm SMD Description

40602600176 CRYSTAL 26MHZ 15pF 20ppm 3.2x2.5X0.7mm SMD 40602600176 is a high-performance crystal component that operates at a frequency of 26MHz with a frequency stability of ±20PPM.Features equivalent series resistance (ESR) of 40 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 0.70mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by HOPERF with compliance to nan standards. Packaged as TAPE&REEL for convenience.

40602600176 CRYSTAL 26MHZ 15pF 20ppm 3.2x2.5X0.7mm SMD Technical Specifications

• Manufacturer: HOPERF
• MountingType: SMT
• Series:
• Package/Case: 4-SMD
• Frequency: 26MHz
• Capacitance: 15pF
• FrequencyTolerance: ±10PPM
• FrequencyStability: ±20PPM
• EquivalentSeriesResistance(ESR): 40 Ohms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.70mm
• OperatingTemperature: -40°C~+85°C
• Rohs:
• Packaging: TAPE&REEL

---

You can click for product datasheet.
